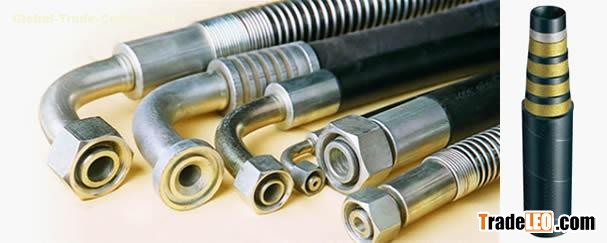

Hydraulic hose HP200 designed with four spiral-wire braid is suitable for all kinds of hydraulic equipment, including in agriculture, industry, metallurgy and mining, where high working pressure and impulse pressure are essential factors.

High Pressure Hose Series HP200 description

Tube: Synthetic rubber

Reinforcement: Four-braid spiral wire

Cover: Synthetic rubber

Working temperature: –40°F to +250°F (–40°C to +121°C)

Max working pressure: up to 6550 psi

Safety factor: 4:1

Packaging: Coil

High pressure hydraulic hose series HP200

Part Hose Size ID Hose OD Max. Working Pressure Min. Bend Radius Min. Burst Pressure Weight

in DIN in mm psi MPa in mm psi MPa (lbs/ft.)

SHP200-04 1/4　 6.4 0.7 17.9 6550 45.2 6 152 26200 180.6 0.38

SHP200-06 3/8　 9.5 0.84 21.4 6450 44.5 7 178 25800 177.9 0.49

SHP200-08 1/2　 12.7 0.96 24.6 6000 41.4 9 229 22000 165.6 0.58

SHP200-10 5/8　 15.9 1.11 28.2 5000 34.5 10 254 20000 137.9 0.72

SHP200-12 3/4　 19 1.26 32.2 5000 34.5 12 305 20000 137.9 0.96

SHP200-16 1　 25.4 1.56 39.7 2000 27.6 13.5 343 16000 110.3 1.32
