Brand:Glede
Model:LY-66
MOQ:1 Sets
Send Inquiry

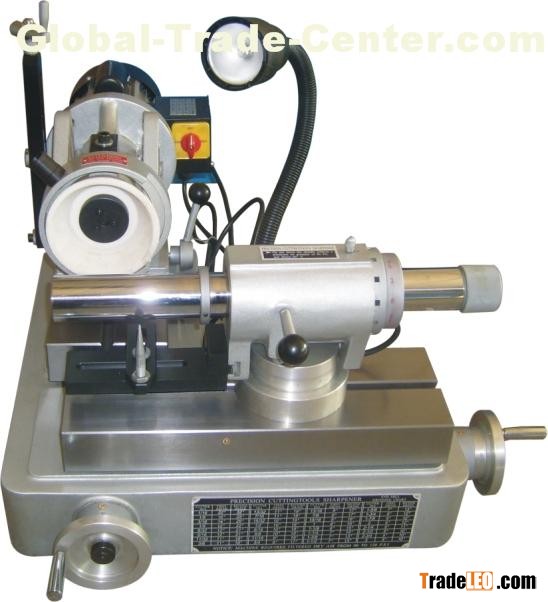

Mill Grinder
| Applicable | 2,3,4,6 flutes HSS endmill.Carbide end mill |
| Capacity: | (shank*blade*length):50*175*200mm |
| Table cross travel( x axis | 115mm |
| Table longitudinal travel(Y axis | 60mm |
| Table in-feed graduation | 0.02mm |
| Adjustment for wheel head | +35degree~-5degree |
| Air bearing swivel | 360degree |
| Dia.of grinding wheel | 125mm*52mm*32mm |
| Air consumption | :>0.63MP |
| Operation time | complete in 2 minutes inculding setup time for 13mm 3 flutes endmill |
| Motor | 220V/0.25/50HZ/2800RPM |
Swing over table: 245mm, 9-3/4"
Longitudinal travel (X axis): 150mm, 6"
Precision:0.01MM
CE certificate
