Brand:Nine delong
Model:M75/JDL150
MOQ:1 Sets

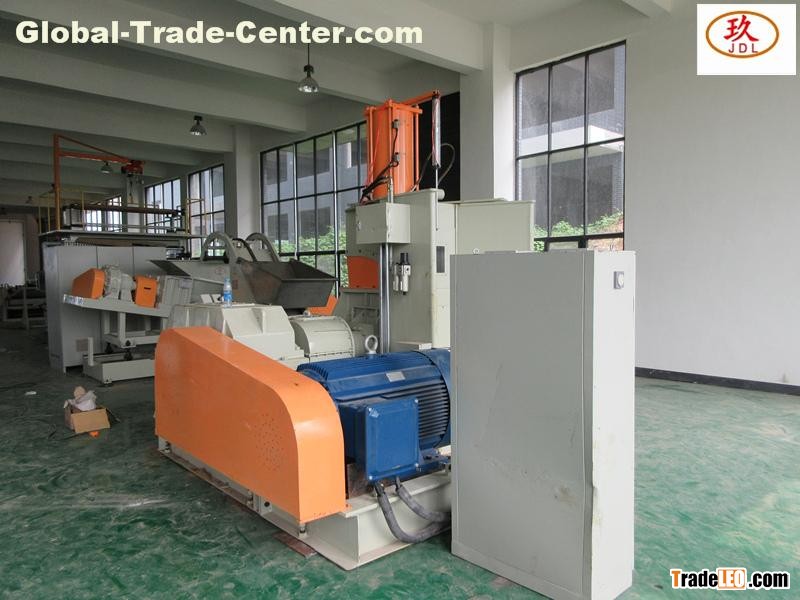

Single screw sheet extruder
Production processing:mixing machine→JDL automatic conveyor→JDLforce feeder→single screw→die mold→three roller calender→tractor→plate corona treatment→cutting machine
Suitable materials:EPDM、PE、POE、EVA、PVC
Application:inside decorative material of the ceiling of car,cars foot mat,cars’interior EVA sheet、cars heat insulation sheet、interior sound insulation pad、cars’floor、front sheet 、side sheet
Main motor:JLD30 JLD80 JLD100 JLD120 JLD150 JLD180
Main motor power 5.5kw--250kw
L/D7:1 --38:1
Screw material:38CrMoALA nitrigon process
Barrel:38CrMoALA nitrigon process ,assemble change cooling copper
|
Model | mixer | Screw-diameter | Motor-power KW | Total Weight(T) | Product Width（mm | Products Thickness(mm) | Capacity Kg/h |
| M55/JDL-100 | 55L | 100mm | 75 | 23 | 1000 | 0.8-6 | 200~320 |
| M75/JDL-120 | 75L | 120mm | 110 | 35 | 1800 | 300~580 | |
| M110/JDL-150 | 110L | 150mm | 132 | 45 | 2150 | 600~960 |
