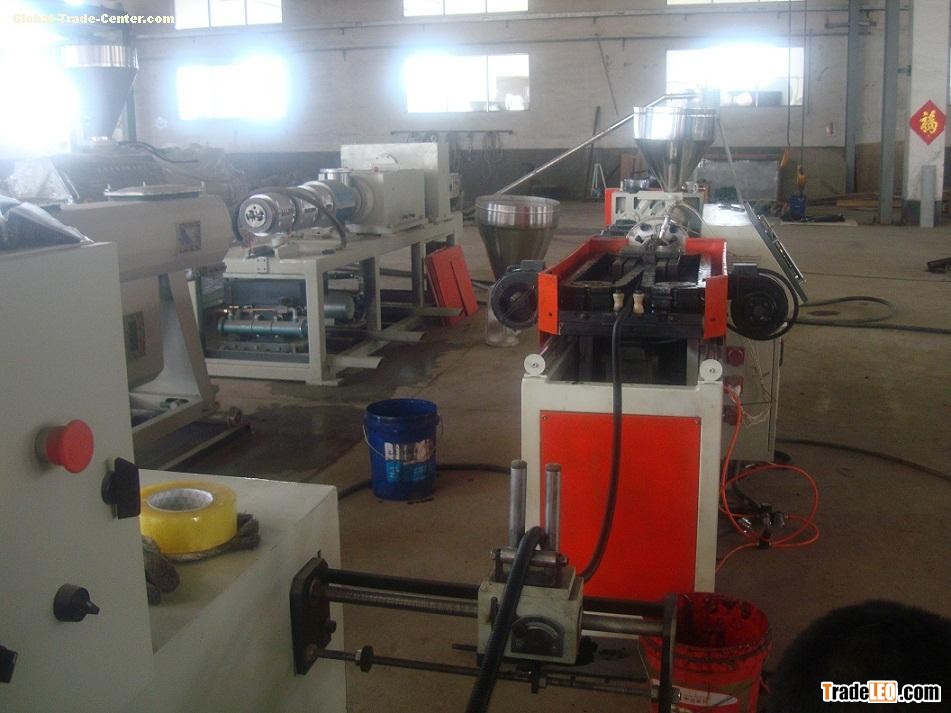

PP/PE Single Wall Corrugated Pipe Extrusion Line

THIS EXTRUSION LINE ConSISTS OF :

1.       Single Screw Extruder

1)      Screw Material: Bimetallic

2)      Screw and Barrel Surface Treatment: Nitriding, Polishing, Grinding

3)      Speed Control of Main Motor: Omron Inverter

2.  Hard Gearbox Reducer

1)  Hardening Gear Surface, Low Noise

2)  Helical Gear

3.  Die Head (8-50mm)

4.  Molding Machine/Corrugator/Corrugation Forming Machine

1)  Close Structure Can Ensure Inner and Outer Smooth, Uniformed Corrugation

2)  The Modules Runs Back and Forth in the Running Tunnels of Closure base.

3)  Transmission Way: Gear

4)  Cooling Method: Air-Blower or Water Cooling

5)  Producing Speed: 3-6m/min

5.  Molding Modules/Blocks

1)  No. of Modules: 38 Pairs-60 Pairs

2)  Material: Exact Processing, #45 Hard Steel Can Ensure the Hardness and Precision of the Modules

3)  Wind Cooling and Replacement of the modules is convenient and reliable.

6.  Single or Twin Position Winder

1)  Type: Moment Motor

7.  Optional Devices

1)  Automatic Vacuum Feeding Machine

2)  Counting Machine

APPLICATION OF THIS CORRUGATION PIPE:

1)      Wire and Cable Threading Pipe, or Communication

2)      Washing Machine Drainage Pipe

3)      Air Exhausted Pipe or Ventilation Pipe

4)      Automobile-Industry, Lamp Industry

5)      Vacuum Cleaner, Dust Collector Pipe
