Brand:Leader Machinery
Model:LSG90/30
MOQ:1 Sets

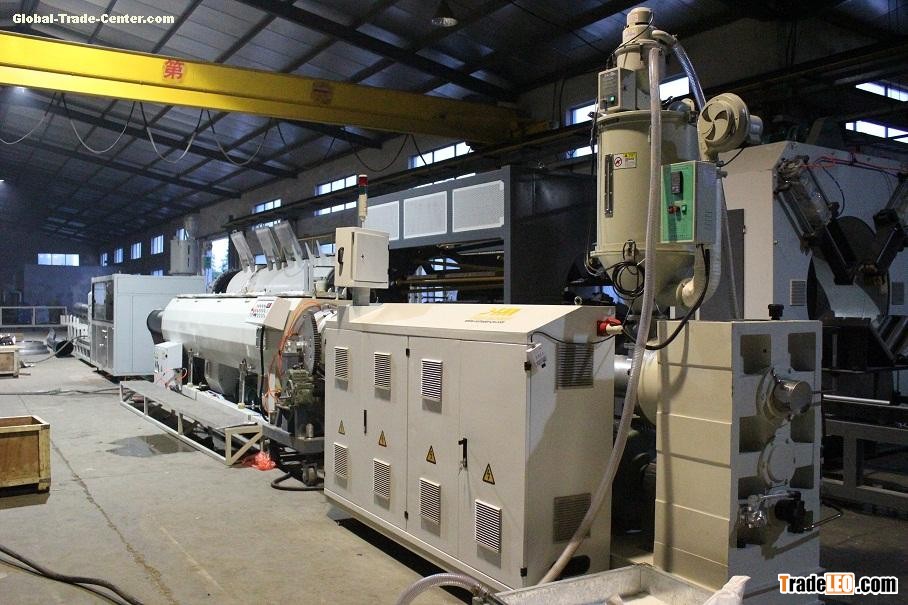

HDPE Water/Gas Pipe Production Line
THIS LINE ConSISTS OF :
1. Automatic Vacuum Feeding Machine 1 set
2. High Efficiency Single Screw Extruder 1 set
3. Co-Extruder for Marking Line 1 or 2sets
4. Die Head/Mould 1 set
5. Vacuum Calibrating Tank 1 set
6. Water Spraying Cooling Tank 1 set
7. Hauling off Machine 1 set
8. Cutting Machine 1 set
9. Pipe Colier or Stacker 1 set
10. Electrical Cabinet 1 set
11. Printer (Optional) 1 set
| Model/Spec. | Diameter range (mm) | Co-extruder model | Line speed (m/min) | Max output (Kg/h) | Installed power(kw) | Line Speed(m) | Installation Area |
| LSG65/33 | 20-110 | LSJ25/25 | 0.3-12 | 180 | 98 | 38 | 38*3.1*2.2 |
| LSG75/33 | 63-160 | LSJ25/25 | 0.5-5 | 220 | 120 | 38 | 38*3.1*2.2 |
| LSG90/33 | 160-400 | LSJ30/25 | 0.5-2 | 450 | 220 | 52 | 52*3.3*2.6 |
| LSG120/33 | 355-630 | LSJ30/25 | 0.1-1 | 800 | 320 | 60 | 60*3.5*2.6 |
| LSG150/33 | 400--800 | LSJ40/25 | 0.1-0.5 | 1200 | 450 | 68 | 68*3.6*3 |
