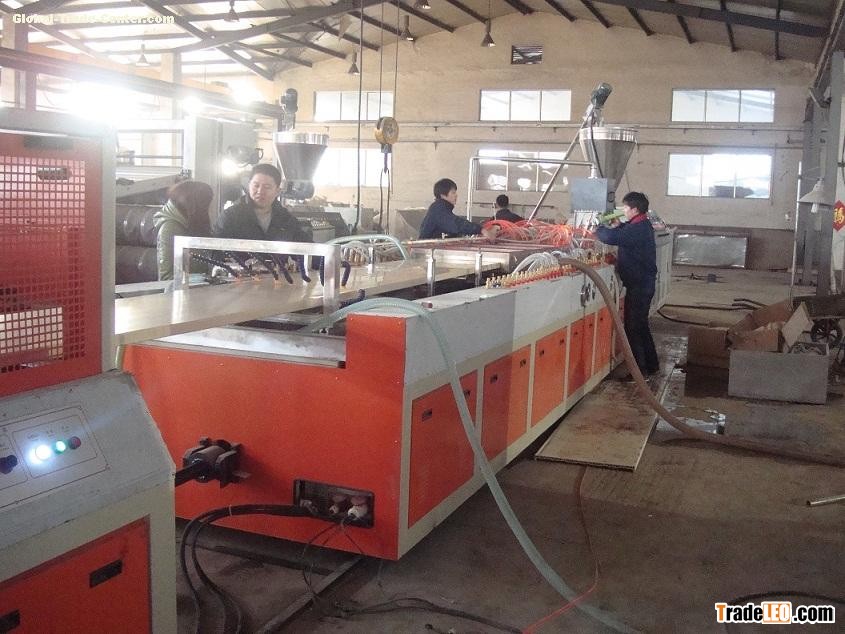

SJSZ-80/156 PVC WPC Foam wide door plate/board extrusion line

Technical Parameters

1. SJSZ-80/156 conical twin screw extruder  1set

·     Screw  diameter: 80/156

·     Material of the screw : 38CrMoALA

·       Power of the main motor: 55kw

·     Max output: 360kg/h

·     Cooling mode of the screw:  self-cooling by the internal circulation of the oil in the core

·     Heating zones and power of the barrel : 4zones 36kw

·     Cooling mode of the barrel: 0.25kw*3

·     Electric parts/components: well-known brand : like OMORN, SIEMENS, SCHNEIDER etc.

2. ZDM-600 vacuum calibration table

·     Power of the vacuum pump:5.5kw*3     4kw*1

·     Power of the water pump : 4kw*1   2.2kw*1

·     Length of the table :6000mm

·     Max exhausting air: 180m³/h

·     Adjusting mode of the calibration of the table : forward-backward movement by motor:2.2kw

                Up-down movement: by reducer (4 motor –driven )

                Left-right movement: by manual

3. QYY-600 haul-off machine

·     Max hauling force:50000N

·     Max hauling speed: 0.1-3.5m/min

·     Width of the belt: 800mm

·     Effective length of the belt: 2800mm

·     Clamping mode : pneumatic

4. QGY-600cuting machine   1set

·       Cutting direction of saw blade: horizontal

·       Moving speed: 1.1kw from left to right

·        Power of the cutting machine motor:2.2kw

·        Max cutting length : (width*thickness): 800*65mm

·        Diameter of the blade: 350mm

·        Cutting time and moving length : 1-5sec, 0-500mm

·     Type of the length calculating: digital meter

·     Equipped with dust sucking device: 1.5kw blower, round bags

5. stacker

·     Power source of the stacker: cylinder power(4, 50*500)

·     Device :6 stainless roller

·     Applied air pressure: 2±0.5MPa
