Brand:ZHUDING
Model:SJ-60/FM1000
MOQ:1 Sets

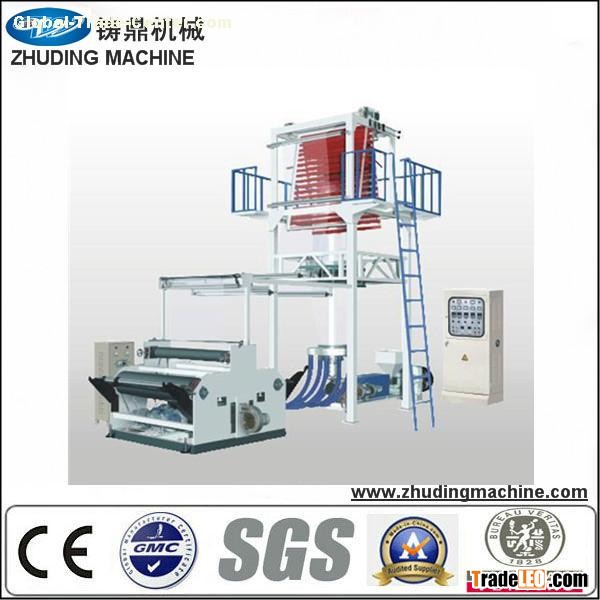

Performance and Characteristics:
The cylinders and the screw stems of the extruder are made of high quality alloy steel with optimum hardness ans strong corrosion resistance after nitrogen treatment and precision finishing.The auxiliary machine has a pattorm working stable for making operation easy and is equipped with bubble stabilizing ring. Double rolling and double cutting coilling unit adopts torque motor to keep proper tension and make even and roll changing easy.
It is used for blowing various plastic film of low density polyethylene, high density polythylene and liner low density polyethylene, ect, which are widely used for packing liquid, industrial products garments and textile, etc.
Main Technical Parameter:
| Type/Item | SJ-55/FM800 | SJ-6-/FM1000 | SJ-65/FM1200 | SJ-80/FM1500 | SJ-100/FM2000 |
| Dia. of screw | 55mm | 60mm | 65mm | 80mm | 100mm |
| L/D Ratio of screw | 28:1 | 28:1 | 28:1 | 28:1 | 28:1 |
| Ratio speed of Screw | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Max. Output | 50kg/h | 65kg/h | 70kg/h | 86kg/h | 140kg/h |
| Power of main motor | 15kw | 18.5kw | 22kw | 30kw | 37kw |
| Specifiction of Die. head | Φ100-150mm | Φ100-180mm | Φ120-220mm | Φ150-300mm | Φ500mm |
| Rotational mode of machine head | contnuous ratation | contnuous ratation | contnuous ratation | contnuous ratation | contnuous ratation |
| Single side thickness of film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Max.folding width of film | 800mm | 1000mm | 1200mm | 1500mm | 2000mm |
| Gross power | 26kw | 30kw | 42kw | 56kw | 88kw |
| Weight of machine | 2300kg | 3000kg | 3800kg | 4600kg | 6000kg |
| Installing Dimension | 6.0*2.0*4.0m | 6.5*2.2*4.5m | 6.8*2.4*4.8m | 7.0*2.7*5.5m | 8.0*3.2*7.6m |
Our Service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
