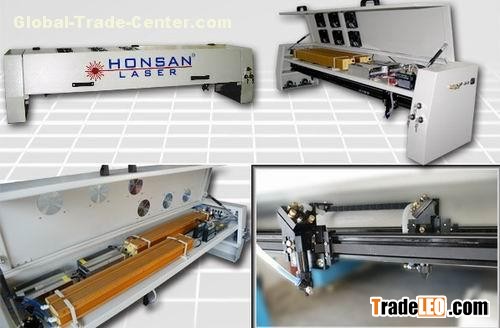

1.Product name:Laser Line Cutting Device On Soft Bags

2.Laser power:25W(RF laser)

3.Laser type:Hermetic CO2 glass tube

4.Working area:Moving the distance 1000mm(According to the width of the cutting machine, can be customized)

5.Max cutting speed:120m/min(full line ) 100m/min(dashed)

6.Min line width:0.2mm

7.Reprecision:less than 1800W

8.Temperature:0-40

9.Whole power:1250W

10.Air consumption:5L/min

11.Data transfer interface:USB(offline)

12.Worktable:honey comb worktable/up and down/aluminium knife/ steel nail (optional)

13.Cooling way:Water Cooling and Protection System

14.Graphic Format Supported:CDR,BMP,PLT,GPEG,DXF,DST etc.

15.Compatible Software:CorelDraw, Photoshop, AutoCAD

16.Sloping Engraving:Yes, slope can be designed discretionarily

17.Cuts off the water supply the protection:Yes

18.Packing:standard wood case

Product configuration

1.The imported RF laser tube,Cutting material depth can control ,power could adjust

2.Laser cutting line speed as the same as the slitter,cutting material line and the depth are accordance

3.Equipped with speed tracking system, can according to the cutting machine speed control the frequency of light

4.Need Lenovo computer control ,DSP smart board.

5.The USA LSX two phase subdivision stepper motor and drive system.

6.25W Radio frequency laser ,After the laser gas finished can fill into gas and reuse.

7.Singapore imported laser lens, tunable laser, sliding guide rail, the integration structure design.

8.Random beyond a set of genuine software, 2 article rubber roller.
