Brand:ZFSJ
Model:SJNX-70-YZ
MOQ:1 Sets

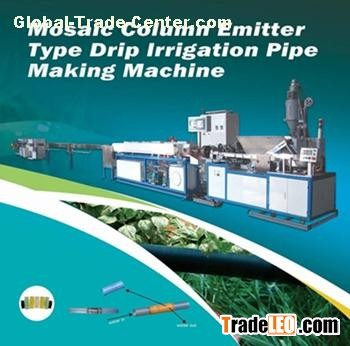

ZFSJ Drip Irrigation Cylindrical Dripline Making Machine .
This production line is used to make different specifications of mosaic column emitter type drip irrigation pipe, which is widely used in water-saving irrigation fields such as greenhouse.
Components of the machine.
1. Dripper supplying machine
2. Plastic extruder
3. Electrical control cabinet
4. Vacuum calibration tank
5. Water-cooling tank
6. Drying and water moving tank
7. Caterpillar band tractor
8. Hole punching machine
9. Two station winder
Main Technical Parameter.
| No. | Item | Technical Parameter |
| 1 | Model | SJNX-70-YZ |
| 2 | Specification of final product | 12mm, 16mm, 20mm |
| 3 | Production speed | 50m/min |
| 4 | Main driving power | 45kw |
| 5 | Maximum extruding capacity | 120kg/h |
| 6 | Heating power | 30kw |
| 7 | Driving power of tractor | 3kw |
| 8 | Winder | 12N.m x 2 |
| 9 | Installation power | 100kw |
| 10 | Overall dimension | 31m x 4.5m x 3m |
