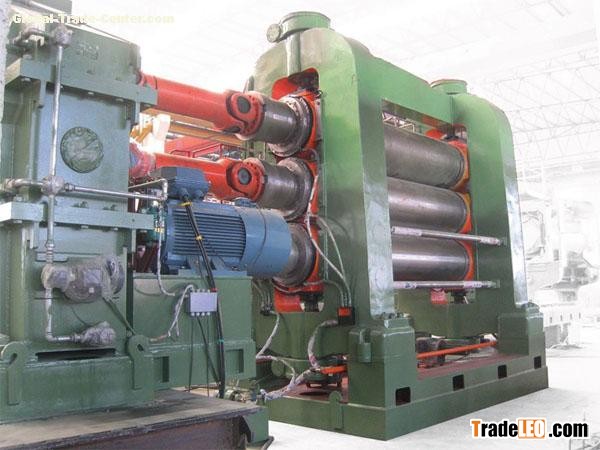

RUBBER CALENDERS MAIN TECHNICAL PARAMETER
| Type | XY-3I630 | XY-3Γ900 | XY-3I1200 | XY-4Γ1120 | XY-4Γ1200 |
| Rolls arrangement | I | Γ | I | Γ | Γ |
| Working diameter of rolls(mm) | Φ230 | Φ360 | Φ450 | Φ360 | Φ400 |
| Working length of rolls(mm) | 630 | 900 | 1200 | 1120 | 1200 |
| Working linear speed of middle | 8.7 | 2∼20 | 27 | 2∼20 | 3∼26 |
| Friction ratio of roll (up:middle:low) | 1:1:1 1:1.2:1 | 1:1:1 0.733:1:1 | 1:1:1 1:1.5:1 | 0.73:1:1:0.73 | 1:1.38:1.38:1 |
| Nip regulating | 0∼7 | 0∼10 | 0∼10 | 0∼10 | 0∼10 |
| Working length of rolls (°C) | 130 | 130 | 130 | 130 | 130 |
| Nip regulating mode(mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Batch capacity (mm) | 500 | 700 | 1000 | 920 | 1000 |
| Main motor power (KW) | 7.5 | 45 | 75 | 55 | 75 |
| L x W x H (mm) Overall Dimension | 3160x900X1830 | 4650x1950X2400 | 5350x1600X2800 | 5200x2120X2300 | 5300x2360X2500 |
| Weight(ton) | 3.5 | 9.6 | 20 | 16 | 20 |
| Bearing case and lubricating type | Ball bearings use oil | Ball bearings use oil | Ball bearings use oil | Ball bearings use oil | Ball bearings use oil |
| Notes | Use single shaft hard surface gear reducer | Use single shaft hard surface gear reducer | Use single shaft hard surface gear reducer | Use single shaft hard surface gear reducer | Use single shaft hard surface gear reducer |
