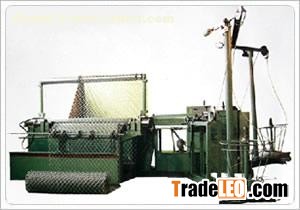

Main parameter of full automatic chain link machine

1.Width scope of weaving: 1-4m
  Wire scope of weaving: 2-4mm
  Mesh scope of weaving: 30-100mm
  With 3 sets of mesh model at buyer's requirements
2.The machine is controlled by PLC automatic controller, so only one person is needed to operate it
3.The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be: 1M2 min.
4.Suitable wire to the machine: the tensile scope of the wire 300-500N/ M 2
5.Use compacting machine to make it into rolls
6.Total power of equipment 11kw
7.Weight of equipment: 4200kg
8.Outside size: main machine: 6700x1430x1800mm
