Brand:DN
Model:CGA870
MOQ:100 Pieces
Medical Oxygen Cylinders with Pin Index Valves Cga870 & Handles:
-OD=140mm;
-W. P. /T. P.: 15/25Mpa;
-(Normal)Wall Thickness: 4.5 mm;
-(Normal)Height: 830mm;
-(Normal)N. W.: 13.6kg;
-White as your preferred;
-W/ O2 valves CGA870, QF-2, & Handles(to-be-/confirm/ied);
-Connecting Thread: PZ 27.8.
-Manufacturing Standard: ISO-9809-3.

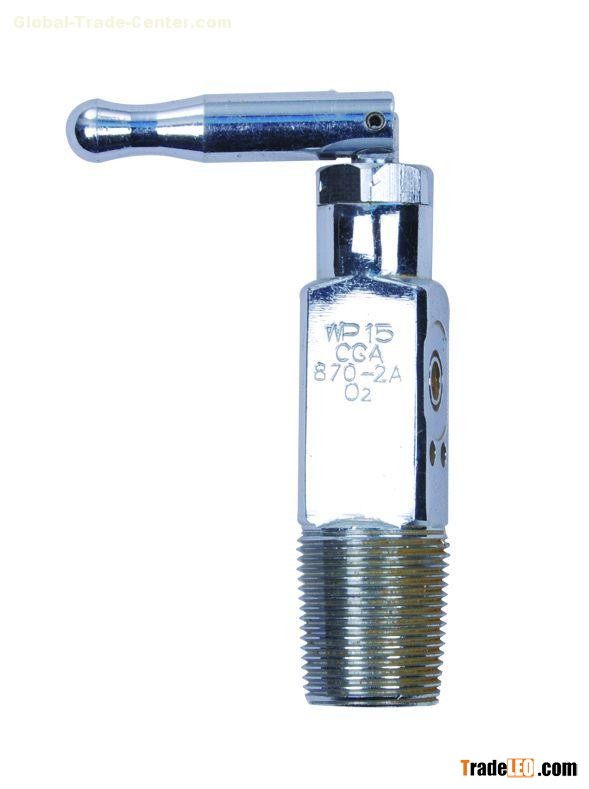

Cylinder Valve: CGA 870A
CGA870 valve is widely used for medical cylinder/ oxygen cylinders/ gas cylinders.
| Model | CGA870A |
| Product Name | Oxygen Cylinder Valve |
| Applicable Media | Oxygen |
| Nominal Working Pressure | 15Mpa |
| Nominal Bore | 1.5mm |
| Outlet Thread | φ7 Clip2-φ4.7Dowel |
| Connecting Thread of The Cylinder | 3/4-16-UNF |
| Safety Device Temperature or Pressure | Steel Cylinder 21~23.2 |
| Aluminum Cylinder 22.9~25.5,73°C±3°C |
