Brand:HYWELL
Model:FZG
MOQ:1 Sets
Send Inquiry

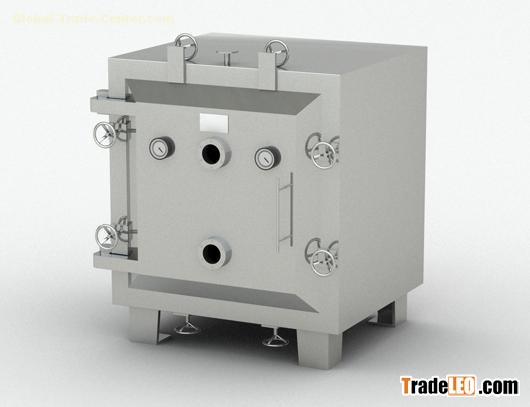

Vacuum Dryer-FZG Square Vacuum Dryer
Features of FZG-15 Square Series Vacuum Dryer:
1. Low-temperature drying machine
2. Vacuum dryer
3. Heating method: steam or hot water
4. Lower energy consumption
*Be clean for drying under the sealed condition.
*The vaporization speed of liquid will be increased with declination of atmospheric pressure.
* Vacuum drying machine equipped with is able to recover solvent of condensation and receiver equipped.
*Be suitable to dry heat- sensitive materials at low temperature
| Model | YZG-600 | YZG-1000 | YZG-1400 | FZG-15 |
| Weight of drying chamer(kg) | 350 | 800 | 1400 | 2100 |
| Layers of baking shelf | 4 | 6 | 8 | 8 |
| Dimensions of baking tray(mm) | 310x600x45 | 460x640x45 | 460x640x45 | 460x640x45 |
| Number of baking tray | 4 | 12 | 32 | 32 |
| Temp inside chamber(ºC) | ≤ 150 | ≤ 150 | ≤ 150 | ≤ 150 |
| Vacuum at idle inside chamber(Mpa) | ≥0.092 | ≥0.092 | ≥0.092 | ≥0.092 |
| Type and power of vacuum pump if condersateor used | 2X-15A 2KW | W3 5.5KW | W3 5.5KW | 2X-70A 5.5KW |
| Tyoe and power of vacuum pump if no condersator used | SK-0.8 2.2KW | SK-3 7.5KW | SK-3 7.5KW | SK-3 7.5KW |
