Brand:Allipower
Model:DLFP6-70
MOQ:-0 -

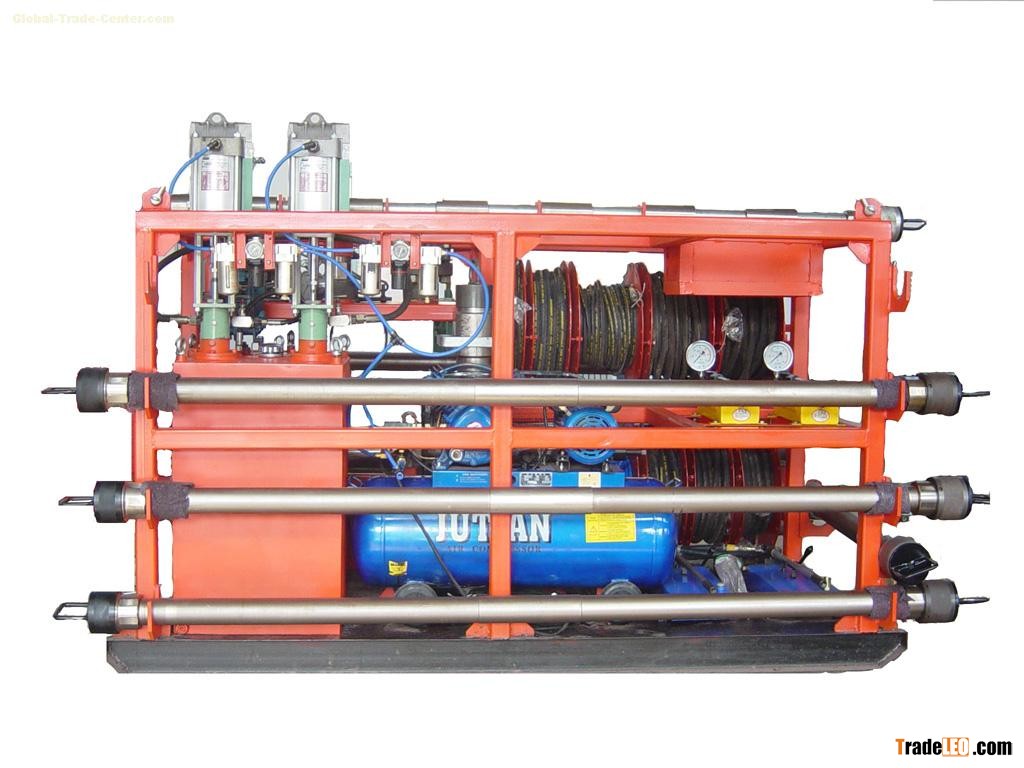

Wireline Pressure Control Equipment Working pressure is 21MPa, 35MPa, 70MPa and 105MPa.
Standard ID is 30mm, 44mm, 52mm, 62mm(65mm), 76mm(78mm), 89mm and 102mm.
Our factory has the ability to design products to adapt to different environment according to clients ' requirements.
TECHNICAL PARAMETER:
| Model | Working Pressure (MPa) | Lubricator ID(mm) | Cable ID(mm) | Sealing Mode | Service Conditions | Working Temperature |
| DLFP3-10 | 10 | 32 | 5.6mm, 8mm, 11.8mm, 12.7mm | Grease injection sealing+Rubber Element Sealing+ Seal Stuffing | Water,crude oil,natural gas with H2S and CO2 | T-20(-29°C~+121°C) |
| DLFP3-21 | 21 | 32 | ||||
| DLFP5-21 | 21 | 52 | ||||
| DLFP6-35 | 35 | 62 (65) | ||||
| DLFP7-35 | 35 | 76 (78) | ||||
| DLFP8-35 | 35 | 89 | ||||
| DLFP10-35 | 35 | 102 (103) | ||||
| DLFP12-35 | 35 | 120 | ||||
| DLFP14-35 | 35 | 140 | ||||
| DLFP16-35 | 35 | 160 | ||||
| DLFP18-35 | 35 | 180 | ||||
| DLFP22-35 | 35 | 220 | ||||
| DLFP6-70 | 70 | 62 (65) | ||||
| DLFP7-70 | 70 | 76 (78) | ||||
| DLFP8-70 | 70 | 89 | ||||
| DLFP10-70 | 70 | 102(103) | ||||
| DLFP12-70 | 70 | 120 | ||||
| DLFP14-70 | 70 | 140 | ||||
| DLFP16-70 | 70 | 160 | ||||
| DLFP18-70 | 70 | 180 | ||||
| DLFP7-105 | 105 | 76 (78) | ||||
| DLFP12-105 | 105 | 120 |
