wire diameter:3-5mm

space of cross wires:50*50-200*200mm

space of line wires:50*50-200*200mm

width of mesh:1200/2100/2500mm

welding speed:60time/min

number of electrodes:48

feeding of line wire:continues

feeding of cross wires:pre-straightened and cut

rated electrical power:125kva*6

run area:18*7m

external power required 160kva 100 120-150mm sqaure aluminum

number of operations:1

compression spring:5*12*150

motor:1600mm 3kw 2100mm 4kw

pole pieces:35*35*18

transformer:1600mm 4  2100mm 5  2500mm  6  125kva

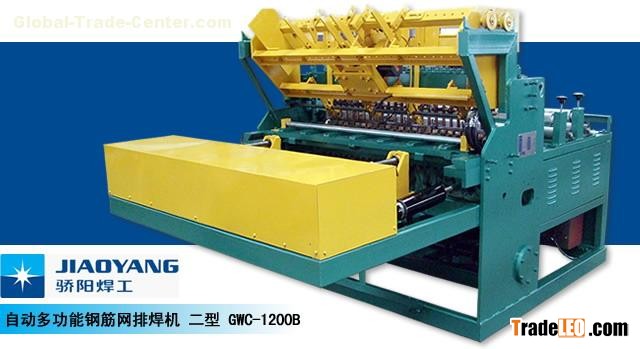

This machine adopts synchronous control technique,both the welding time and cent-control welding is composed of digital and integrated electric.This operation is accurated,it has stable firm welded point and without welded tracks.Not only welding speed is fast but also it is easy to learn and operate.The line wires are fed form rolls and through precise wire straightening and positioning devise.Step motor controls fallen wefts structure and drawing materials are automatic so it is even and accurate,the edges of mesh are regular,it is unnecessary to slice the side.Drawing mesh adopts the device with the elastic tension link and fixing the mesh,it is easy to regulate mesh holes and mesh size is rather accurate,welding apertures could also adjust rangdomly within the range.the speed of this machine is very fast.It is easy to learn and only needs to operate.The finished mesh could be in rolls or in panels.
