a.wire diameter:2.8-3.2mm

b.welding aperture:50*50-200*200mm

c.width of mesh:1200mm

d.welding speed:60time/min

e.rated voltage:380v

f.run area:3*8m

g.compression spring:4*11*138mm

h.external power required 80kva 100m 95-120mm sqiare aluminum

i.number of operations:1

j.ancillary equipment off reel,shears,straight wire

k.motor:2.2kw

l.on contacts:16*100

m.pole pieces:35*35*18

n.transformer:72kva*2

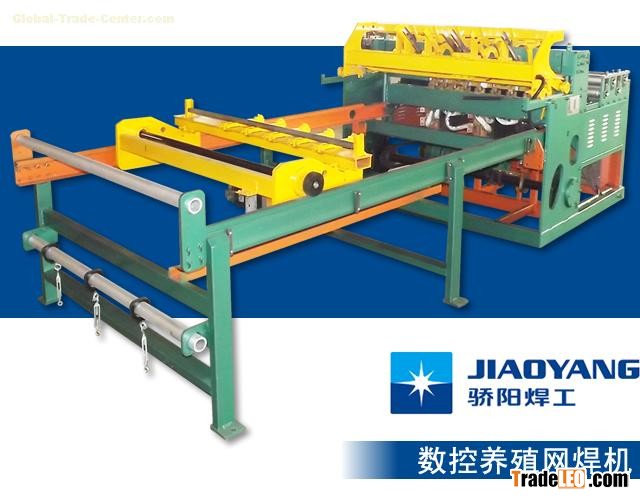

The machine electrical aynchronous control technique,both welding time and cent-control welding is composed of digital and integrated electric circuit.This operation is accurate,it has stable function,firm welded point and without welded tracks.Not only welding aped is fast but also it is easy to learn and operate.step motor controls fallen wefts structure and drawing materials are automatic so it is even and accurate the edge of mesh is regular,it is unnecessary to slice the side.Drawing mesh adopts the device with the elastic tension link and fixing mesh,it is easy to regulate mesh hole and mesh size is rather accurate,welding aperture could also randomly within the range.
