wire diameter:1.4-2.5mm

welding aperture:50*50-200*200mm

wich of mesh:1200/1600mm

number of electrodes/:25

welding speed:60time/min

rated voltage:380v

rated electrical power:72kva

run area:12*3m

external power required min 50kva or less 70-95mm square aluminum

number of operations:2

compression spring:28*11*138

motor:2.2kw

on contacts:16*100

pole pieces:35*35*18

transformer:56kva*2

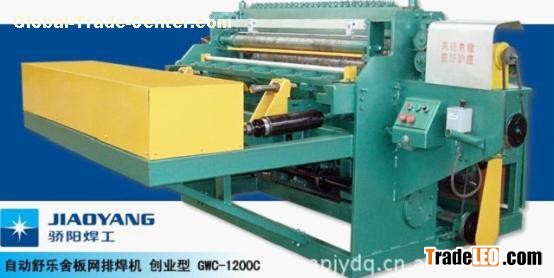

The machine adopts electrical electronic synchronous control technique,both welding time and cent-control welding is composed of digital and integrated electric circuit.This operation is accurate,it has stable fun ction,firm welded point and without welded tracks.not only welding speed is fast but also it is easy to learn and operate.The machine is equipped with precise equipment for weft cutting and position, so the length of wefts is identical and regular,it is unnecessary to slice the side.Mesh panel drawing sysem adopts elastic tension link and mesh opening positioning device.It is easy to regulate mesh hole and mesh opening size is rather accurate,welding aperture could adjust randomly within certain range.
