wire diameter:1.6-2.5mm

space of cross wire:65/115/165/230mm

rated voltage:380v

space of line wire:250-300mm

number of electrodes:6-8 electrodes

welding speed:45

run area:5*9m

external power required 50kva 150m 70-95mm square aluminum

number of operations:1

ancillary equipment off reel.volume mesh machine.straightening wheels electric cabinet,straight wire

compression spring:4*11*150

motor:2.2kw

on contacts:16*100

pole pieces:35*35*18

transformer:56kva*2

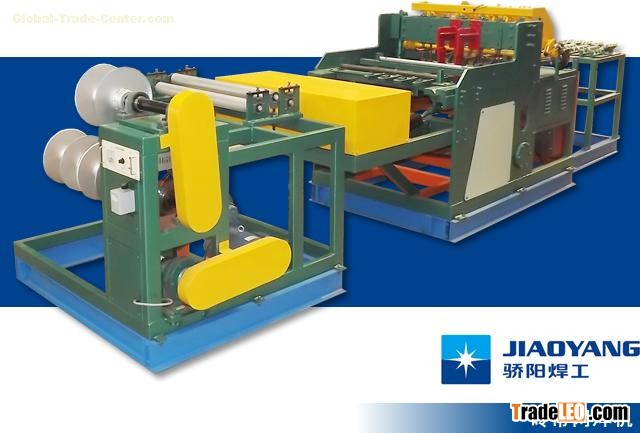

This operation is accurate,it has stable function,firm welded point and without tracks.Not only welding speed is fast but also it is easy to learn and operate.The stop motor controls fallen wefts structure and drawing materials are automatic so it is even and accurate,the edge of mesh is regular,it is unnecessary to slice the side.Drawing mesh adopts the device with the elastic tension link and fixing the mesh,it is easy to regulate mesh hole and mesh size is rather accurate,welding aperture could also adjust randomly within the range.It is automatic to make mesh in pieces and in rools.
