wire diameter:3-6mm

welding aperture:50*50-300*300mm

width of mesh:1200/1600/2100/2500mm

number of electrodes:60time/min

rated voltage:380v

rated electrical power:750kva

run area:18*7m

external of operation 4(person tune straight,one look at the machine,they wear silk

compression spring:5*15*150

motor:3kw(1200/1600mm)4kw(2100/2500mm)

on contacts:18*100

pole pieces:35*35*18

transformer:1200mm 3  1600mm 4  2100mm 5  2500mm 6  125kva

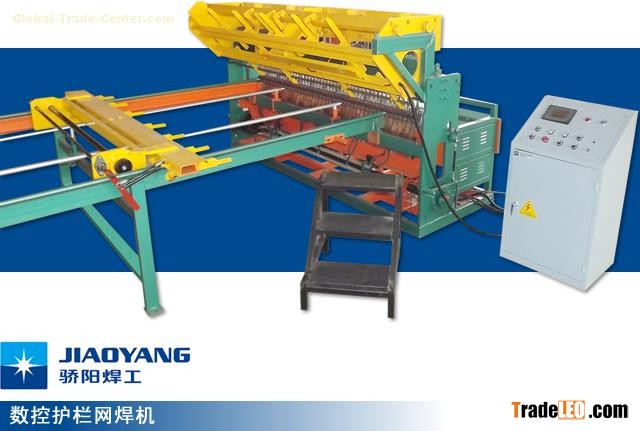

This machine adopts synchronous control techique,both welding time and cent-control welding is composed of PLC program system.The input front-panel has two forms,touch screen and keyboard;it makes this machine more intelligent and reasonable.The greatest advantage is that it can be adjusted the distance of wefts at random on the sane one piece of mesh sheet.
