Brand:DHH
Model:-
MOQ:1 Sets
Send Inquiry

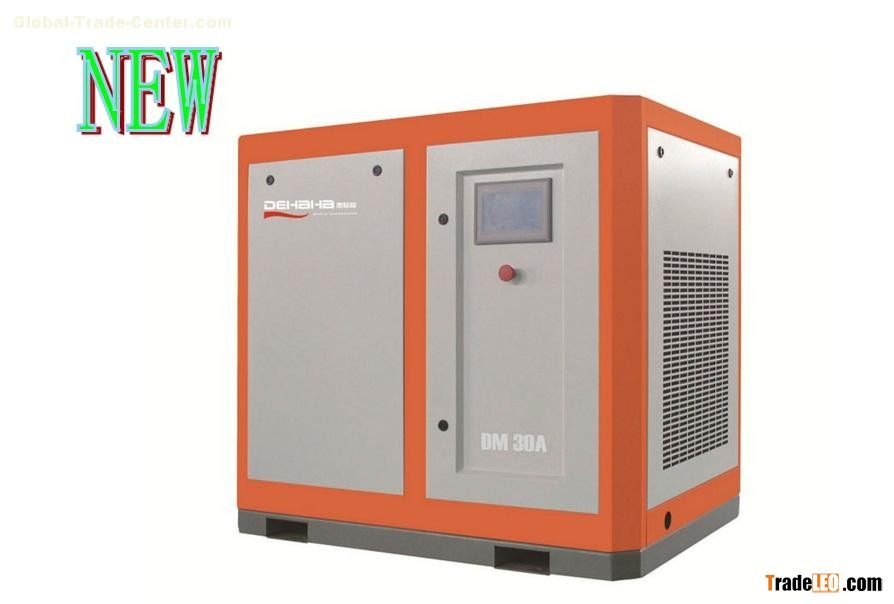

| Permanent Magnet Frequency Conversion Screw Compressor | ||||||||
| DHH | Capacity | power | Noise | Outlet | Dimension | Weight | ||
| Diameter | ||||||||
| MODEL | Mpa | m3/min | KW | HP | db(A) | INCH | W×D×Hmm | Kg |
| DM-25A | O.8 | 3.2 | 18.5 | 25 | 60 + 2 | G1'' | 1200×850×1100 | 500 |
| 1.0 | 2.9 | |||||||
| 1.25 | 2.5 | |||||||
| DM-30A | O.8 | 3.53 | 22 | 30 | 60 + 2 | G1'' | 1200×850×1100 | 550 |
| 1.0 | 3.26 | |||||||
| 1.25 | 2.8 | |||||||
| DM-50A | O.8 | 6.53 | 37 | 50 | 61 + 2 | G1 1/2'' | 1300×1000×1200 | 750 |
| 1.0 | 5.67 | |||||||
| 1.25 | 5.02 | |||||||
| DM-60A | O.8 | 8.37 | 45 | 60 | 61 + 2 | G1 1/2'' | 1300×1000×1400 | 850 |
| 1.0 | 7.36 | |||||||
| 1.25 | 6.23 | |||||||
| DM-75A | O.8 | 10.23 | 55 | 75 | 63 + 2 | G2'' | 1800×1300×1700 | 1550 |
| 1.0 | 8.88 | |||||||
| 1.25 | 7.57 | |||||||
| DM-100A | O.8 | 13.2 | 75 | 100 | 63 + 2 | G2'' | 1800×1400×1700 | 1750 |
| 1.0 | 11.45 | |||||||
| 1.25 | 9.98 | |||||||
| DM-125A | O.8 | 16.33 | 90 | 125 | 68 + 2 | DN50 | 1850×1450×1700 | 2350 |
| 1.0 | 13.65 | |||||||
| 1.25 | 12.12 | |||||||
| DM-150A | O.8 | 19.3 | 110 | 150 | 68 + 2 | DN65 | 2500×1600×1800 | 2650 |
| 1.0 | 17.06 | |||||||
| 1.25 | 15.08 | |||||||
| DM-175A | O.8 | 23 | 132 | 175 | 68 + 2 | DN65 | 2600×1600×1800 | 2850 |
| 1.0 | 20.3 | |||||||
| 1.25 | 18.67 | |||||||
| DM-220A | O.8 | 26.5 | 160 | 220 | 68 + 2 | DN80 | 2700×1700×1800 | 3350 |
| 1.0 | 24 | |||||||
| 1.25 | 21.5 |
