Specification:

• Item no.: QL003-PF
• Dimension: 5000*5000*1400mm
• Equipment: Fiber opener 1pcs; Fan 1pcs; Filling lot 2set; PLC control system 1pcs
• Voltage: 380v 50Hz 3phase
• Power: 8.45kw
• PLC: Siemens Brand
• Labor: 2 persons
• Capacity: 150-180kg/h; 6-8pcs/min.
• Fiber opening rate: more than 98% and not be damaged
• Weight: 690kg

Description:

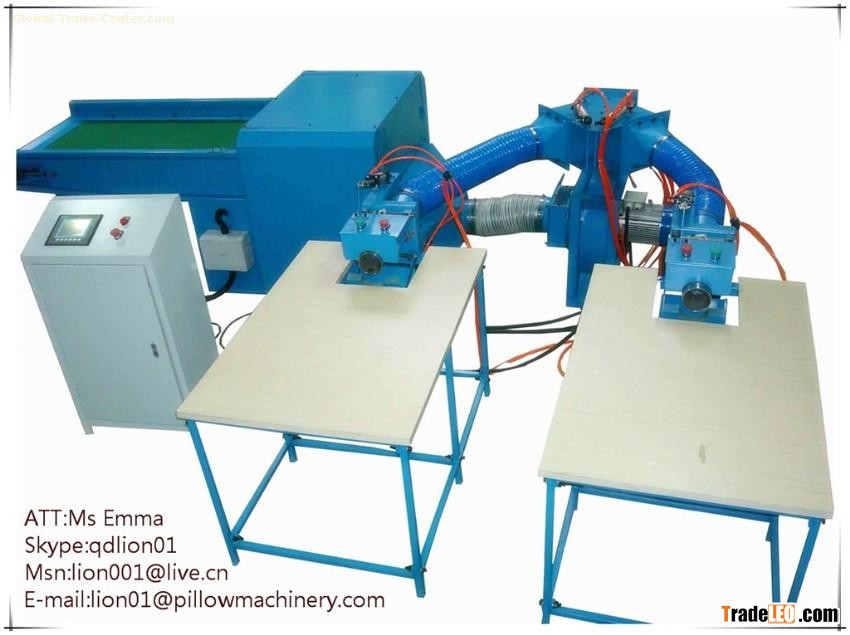

• Qingdao Lion Computerized Pillow Machine item no. QL003-PF is one of the latest developed machines according to our customer’s requirement and experience during using our machine.
• It is adjusted by PLC computer system that the whole line can be handled by only 2 operators, one of them is mainly working for raw material feeding and another one works for the 2 fillings that adjusted by control panel.
• It requires conjugated hollow siliconized polyester fiber that shorter than 100mm. normally there are 30% material can be mixed with non-siliconized fiber waste or wool etc. NOTE: The user should ask for confirmation from the seller before change the fillings.
• The filling time can be adjusted from the PLC control panel according to the different production size and filling quantity for each pillow case from each filling slot separately.
• Different requirement can be considered to work on our equipment to be suitable to the customer.
