Specification:

• Item no.: SX1710-A7H-AY
• Dimension: 3300*2600*1020mm
• Voltage: 380v 50Hz 3phase
• Power: 10.65kw
• Labor: 3 persons
• Capacity:150-180kg/h
• Weight:710kg

Description:

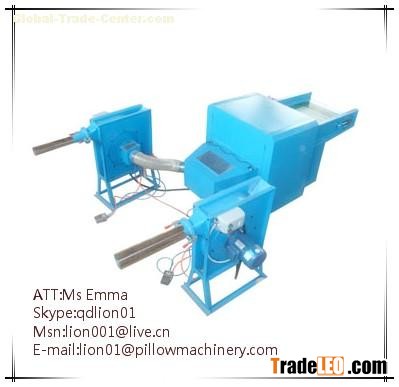

• The pillow machine is used for pillows, cushions and sofa cushions, large size plush toys etc soft stuffing productions.
• The suitable material is 2 or 3 dimensional hollow conjugate siliconized polyester fiber that shorter than 100mm length.
• Automatic raw material feeding conveyer sends the raw material into the opening rollers automatically which saves the labor costs
• metallic self-lock wire assembled to the rollers that increased the capacity and helps the material not to damage at all, so and lower repairing rate.
• The whole set can be handled by only 3 operators with very simple operation.
• Overload protection assembled
• The pillow machine has been developed times according to the customers requirement which is no problems happened as in the past such like fiber jammed.
• Its reliable and stable quality
