Features of this model also include the following:

• CE certified.
• Equipped with world’s leading feeder system.
• Human machine interface.
• Siemens latest PLC technology.
• European and Japanese standard spare parts.
• ISO9001:2008 approved manufacturing process.
• Maximum sheet size: 1050*750mm.
• Minimum sheet size: 400*360mm.
• Front waste removal device.
• Photoelectric device for safe operation and machine precision.
• Centerline system and pneumatic lock-up system for quick cutting die and stripping die setup and job changeover.
• Electrical controlled auto-lifter is equipped for holding upper stripping frame when stripping function is not needed.

Specification:

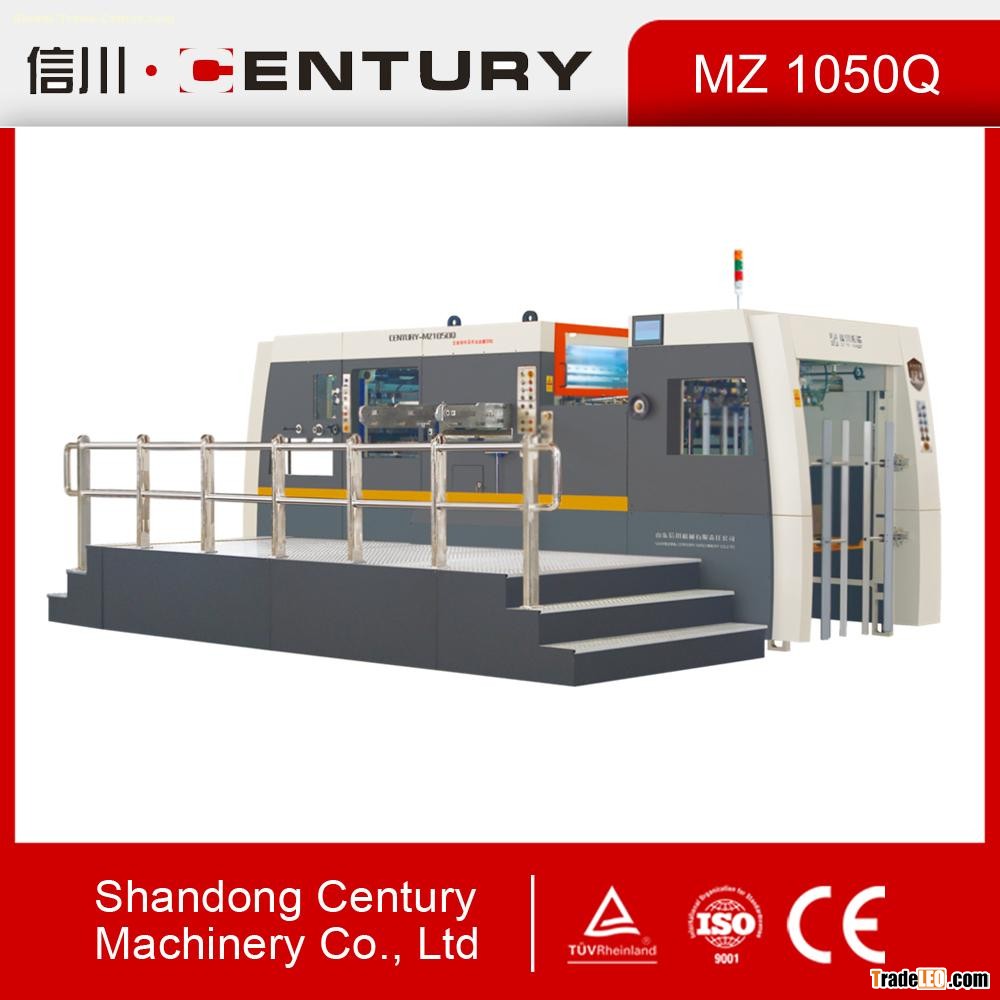

Model NO.:MZ 1050Q
Maxi sheet size:1050*750mm
Min sheet size:400*360mm
Maxi cutting size:1040*730mm
Maxi cutting pressure:300*104N (300 tons)
Stock range:Corrugated board up to 4mm and cardboard (90-2000g)
Cutting precision:±0.1mm
Pressure adjustment range:±1mm
Paper delivery height:1250mm
Paper feeding height:1500mm
Maxi speed:7500 s/h
Min front waste:9mm
Inner chase:1140*756mm
Machine power:20.3 KW
Motor power:11 KW
Dimension:L*W*H: 6000*4400*2440mm
Weight:17 T
