Brand:Creative
Model:DFA 31/21
MOQ:1 Sets

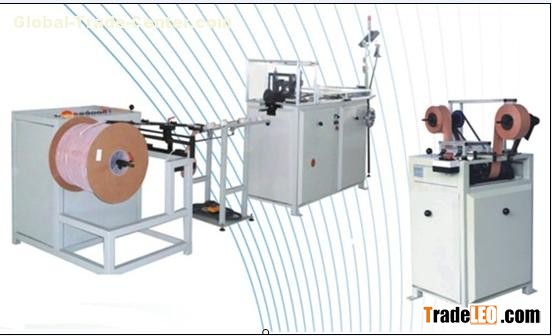

1.Double Wire Forming Machine DFA-31/21
(Forming machine +spooling machine+Paper cutting machine)
This machine is applied to the mass production of double wire loops,which is widely used in notebooks,workbook,calendars,etc.
Advantages :
u Fast and effective, applicable to nylon-coated wire, tinned wire and galvanized wire.
u High quality products, and no damage in coated layer of the wire .
u Different size of coils in the same pitch can be produced by replacing the forming mold.
u Accurate pitch,standard shape
u Reliable operation,high versatility.
Technical data:
| Speed | 350~550 Loops/min | ||
| Total Power | Forming machine | 0.75 Kw | |
| Spooling machine | 0.37Kw | ||
| Paper cutting machine | 0.25Kw | ||
| Power | 1PH 220V 50/60 HZ(other voltage on request) | ||
| Net Weight | 500Kg | ||
| Dimension | Forming machine | 2400x650x1700 mm | |
| Spooling machine | 1300x1000x1200mm | ||
| Paper cutting machine | 600x500x1400 mm | ||
Pay attention to :
² Double Wire Forming Machine system have 3 parts:forming machine+rolling machine+cutting machine.
² Forming machine have mold to suit the needs, the same to rolling machine.
² Voltage specification : 1PH 220V 50/60HZ (other voltage on request )
² We could also provide Wire and paper roll.
² If you need more size ,you should buy mold,We suggest you one machine produce one size will be better for you ,as it can enhance your efficiency.
² We off good after-sales services.
