Brand:-
Model:ZY
MOQ:1 Sets
Paper grades：cardboard paper, cultural paper, etc

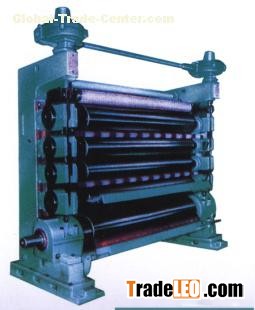

Type: two-roll calender, three-roll calender, five-roll calender, multi-roll calender, etc.
Technical parameter:
| Specification | ZY2 1092 (five-roll) | ZY2 1092 (three-roll) | ZY3 1575 (five-roll) | ZY3 1575 (three-roll) | ZY4 1760 (seven-roll) | ZY5 2100 (five-roll) |
| Roller surface width | 1360 | 1360 | 1760 | 1760 | 1980 | 2350 |
| Max limited pressure | 60kg/㎝² | 52kg/㎝² | 60kg/㎝² | 45kg/cm² | 60kg/cm² | 69kg/cm² |
| Inflating form | Lever and weight type | Lever and weight type | Lever and weight type | Lever and weight type | Lever and weight type | Lever and weight type |
| Drive system | Line-shaft drive | Line-shaft drive | Section drive | Section drive | Section drive | Section drive |
| Weight | 7652kg | 6500kg | 8074kg | 7406kg | 16300kg | 15000kg |
