Feature:
1. For the feeder, the machine adopts non-stop feeder with paper pre-loading function, allowing automatically feeding paper.
2. This machine uses high-precision front-side ruler, aligning paper automatically.
3. There is double-wheel brush and hot pressing power-removing unit for this machine.
4. It is equipped with disc-type cutting knife, which highly facilitating paper cutting speed.
5. There are frequency control and servo motor in main unit.
6. This machine is touch screen and PLC controlled.

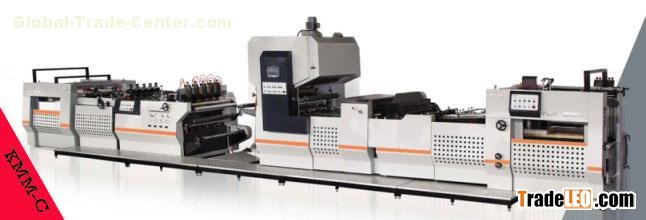

Main Specification of HQFM-1020 High Speed Automatic Laminator:
| Max paper size | 910mm×1020mm |
| Min paper size | 320mm×320mm |
| Fit paper thickness | 80-500g/m2 |
| Laminating temperature | 80-120℃ |
| Laminating pressure | 0-25Mpa |
| Working speed | 0-60m/min |
| Overall dimension(LXWXH) | 13m×1.9m×2.5m |
| Total power | 75kw |
| Total weight | 7200 kg |
