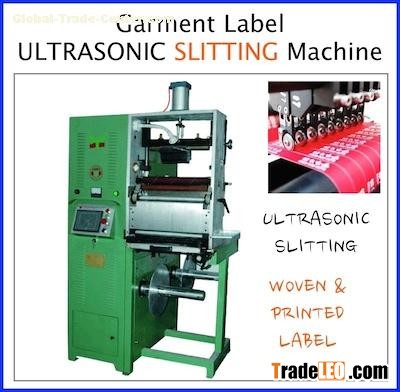

Charactors:
- Suitable for belt materials such as woven label, satin ribbon tape, cloth tape, adhesive tape and etc.
- With color screen inter-face control system, easy to operate
- With ultrasonic generator & horn vibration and knife enable slitting
- Cutting & sealing in one time, no dissipated edge & shrinkage, the edge is soft and smooth
- Opposite edge guiding system to get good slitting accuracy
- Synchronized 3 shafts to rewind the finished labels, pneumatic core holding system
- Automatic checking system, the machine will be automatically stopped when ultrasonic system has abnormal or slitting break, to avoid label faulty and waste.
- Stepless speed adjusting with inverter motor.
Technical parameters:
| Ultrasonic frequency | 35kHz or 20kHz |
| Total Power | 50/60Hz, 200V <3KW |
| Work width | 220mm |
| MIN slitting width | 6mm |
| working speed | 1~20M/min |
| Air pressure | 6kg/cm 2 |
| Weight | 400kgs |
| Dimension | L x W x H = 1020 x 1120x 1980 mm |
