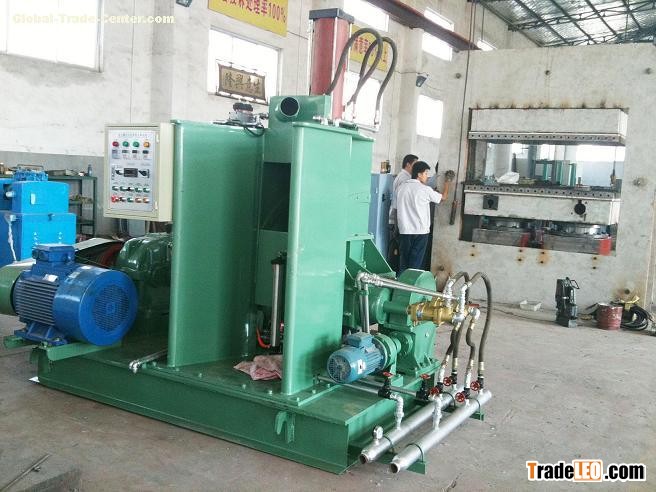

20L RUBBER KNEADER
the volume of mixing chamber :         45L
the mixing volume of chamber :         20L
 the speed of rotor :                   32/ 25r/min
The pressure of ram to rubber stock :     0.14~0.19 Mpa
The pressure of compression air :        0.5~0.8Mpa
The pressure of cooling water :          0.2~0.4Mpa
The pressure of heating steam :        0.5~0.8Mpa
The tilting angle of chamber :           140 degree.
The power part :
main motor :
the power:                                      30KW
the voltage :                                  220 V 60HZ
the motor of tilting :
the power :                                   1.5 KW
the voltage :                                  220V 60HZ
the total weight :                            ~4.5 t
Overall Size:                       2630 × 1520 × 2550 mm ( Length ×  Width ×  Height )

Control mode:                                              PLC
