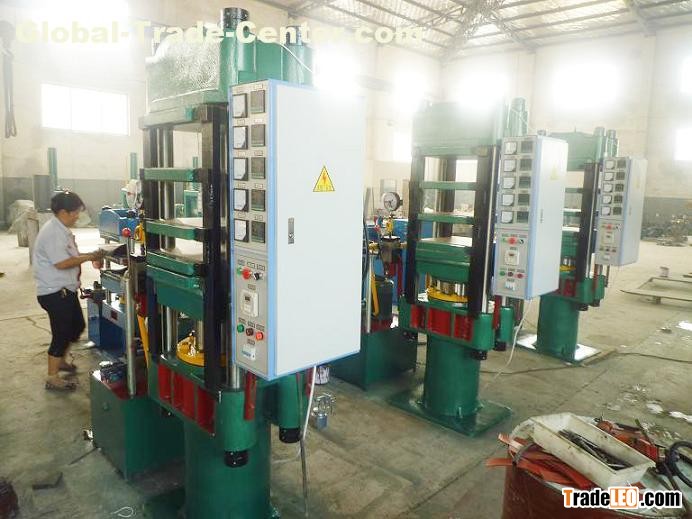

Name                                        Rubber Sole Press(Column Type)

Model                                        XLB-450×500×4/1.00MN
Clamping Force                     1.00MN
Heating Plate Size                 450×500×60mm
Distance Between Hot Plate 170mm
Piston Diameter                     ￠300mm
Piston Stroke                           600mm
The maximum working fluid pressure    16.0 Mpa
Working Layer No.                  4
Unit area pressure                 6.35Mpa
Drive motor power                 3.0KW  (380V 50HZ 3PH )
heating method                     electrical heating
maximum operating temperature     200℃
control mode                          manual control
Structure                                 Four pillar with D=76mm
Overall Size(L×W×H ) about 2200×1100×2800mm
Weight                                   about 3000Kg
Packaging                            Simple wooden box packaging
