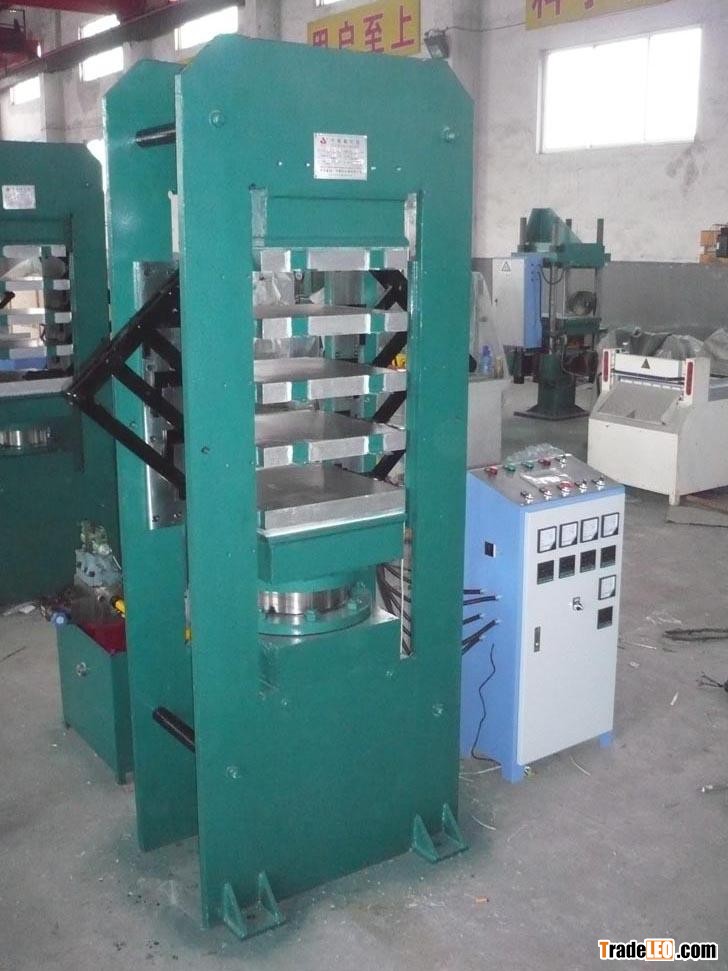

XLB-450×450×4/1.00MN Rubber Press

Type        XLB-450×450×4/1.00MN RUBBER PRESS

Total Pressure:               1.00MN

Heating Plate Size:        450×450×60

Distance between plates:      120 (mm)

Working layer number:         4

Piston Diameter:                300 (mm)

Piston Stroke:                   400(mm)

Unit area pressure:           4.94(Mpa)

Working Oil Pressure        16.0MPa

Close mould speed:         ≥12(mm/s)

Open mould speed:         ≥12(mm/s)

Heating mode:             Electric heating mode

Working temperature:       0-300

Heating power:            18.0 Kw/h

Motor power:               2.2KW

Total power:               23.2KW/H (Electric heating type)

Power supply              380V 50HZ 3PH

Structure:                 frame Type

Thickness of frame:    30mm

Control mode:         PLC automatic controller which has the function of automatic opening,  automatic exhaust, automatic pressure compensation, etc.

Weight:                  Approx 2900(kg)

Machine size:      1100×1450×1850mm
