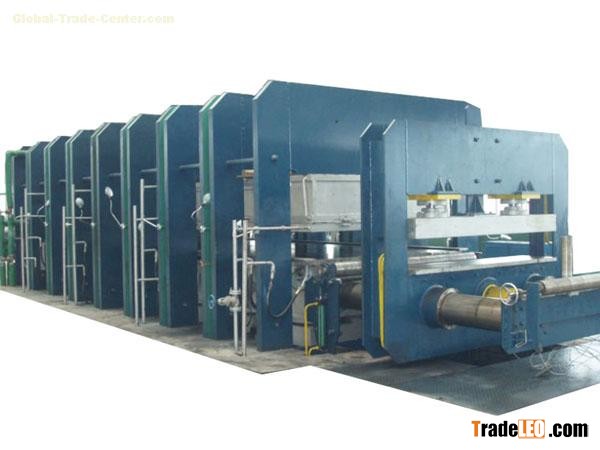

PLATEN MAIN TECHNICAL PARAMETER
| Type | XLB-Q1300x6000 | XLB-Q1400x10000 | XLB-Q1600x10000 | XLB-Q1800x10000 |
| Total pressure | 28.8 | 49 | 56 | 72 |
| Platen size(mm) | 1300x6000 | 1400x10000 | 1600x10000 | 1800x10000 |
| Pressure unit of plate(MPa) | 3.69 | 3.5 | 3.5 | 4 |
| Number of working layer | 1 | 1 | 2 | 1 |
| Distance between plate(mm) | 250 | 300 | 200 | 300 |
| Cylinder number | 6 | 20 | 18 | 18 |
| Ram diameter(mm) | φ600 | φ450 | φ450 | φ500 |
| Max.ram stroke (mm) | 250 | 300 | 400 | 300 |
| Steam pressure(MPa) | 0.63 | 0.63 | 0.63 | 0.63 |
| Overall Dimension L x W x H (mm) | 6500x2200x3350 | 10200x2400x3680 | 10000x2660x4100 | 10000x2750X3650 |
| Control form | PLC | PLC | PLC | PLC |
