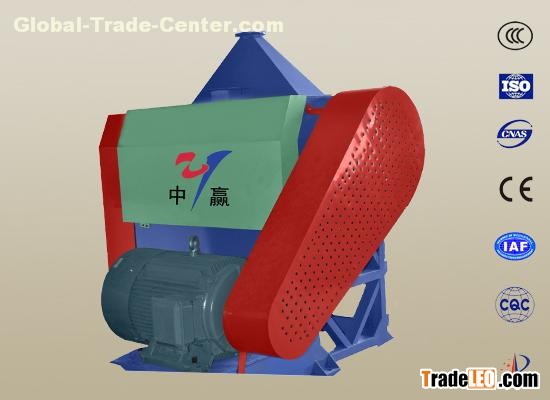

Rubber Find Crusher
patent number
ZL 2010.2 0231967.5
ZL 2010.2 0132987.4
Main uses
The machine is used to crush the 6-12mm rubber granules to 1-3mm rubber granules at normal temperature, and separate the fiber from the rubber granules.
Construction features
1.It adopts double layer interstitial texture feeding hopper, can absorb the noise and dust generated during production.
2.It adopts double layer interstitial texture feeding hopper, can avoid the rubber become sticky and burned in high speed running.
3.It adopts a particular cutter structure, in order to cut reasonable, reduce power consumption, length use period.
Technical specification
| 型号 Mode | 规格（毫米） Norm(mm) | 重量（吨） Weight（(t) | 生产能力千克（/小时） Capacity(kg/h) | 功率（千瓦） Power(kw) | 进料尺寸（毫米） Input size | 出料尺寸（毫米） Output size |
| ZFCX-F229-ZY-C | 2950×2220×3120 | 4.8 | 800-1200 | 45-75 | 6-12 | 1-3 |
