Brand:HITOP
Model:-
MOQ:1 Sets

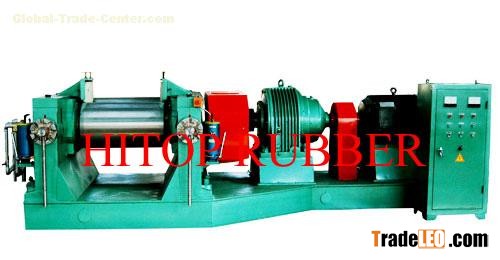

Rubber refiner is equipped with double adhesive device, to replace artificial turn glue, packaging, reduce labor intensity.
This machine adopts Korean technology, has reached the advanced domestic level. And the hydraulic pressure plate, block can be adjusted freely adjust the cylinder block glue board in the axial distance.
Mainframe applications, chain transmission structure compact, high strength, low noise characteristics.
| Modle | XKJ-400 | XKJ-480 |
| Front roll diameter(mm) | 400(Waist-drum) | 480(Waist-drum) |
| Rear roll diameter(mm) | 518(Waist-drum) | 612(Waist-drum) |
| Working length of rolls(mm) | 760 | 800 |
| Front roll linear speed(m/min) | 24.98 | 22.97 |
| Rolls speed ratio | 1:1.707 | 1:1.82 |
| Max.nip(mm) | 10 | 15 |
| Capacity | ~480 | ~500 |
