Brand:yadong
Model:-
MOQ:1 Sets
| and spec. | XJ-65 | XJ-85 | XJ-115 | XJ-150 | XJ-200 | XJ-250 |
| Screw dia.(mm) | 65 | 85 | 115 | 150 | 200 | 250 |
| L/D | 4 | 4.8 | 4.8 | 4.4 | 4.4 | 4.5 |
| Screw rotational speed(r/min) | 20.27 | 27.40 | 20∼60 | 27∼81 | 22.4∼67.2 | 19.7∼59.1 |
| Motor powerkw | 7.5 | 17 | 30 | 15.3∼55 | 33.3∼100 | 33.3∼100 |
| Overall dimension L×W×H(mm) | 1600×675×1053 | 2050×735×1275 | 2770×665×1300 | 3585×814×1470 | 4549×1140×1750 | 4950×1150×1483 |
| Capacity kg/h) | 50∼80 | 62∼270 | 100∼350 | 800 | 1500∼2200 | 3500 |
| Total weight(t) | 1.5 | 2.6 | 3.3 | 4.5 | 7.21 | 9 |

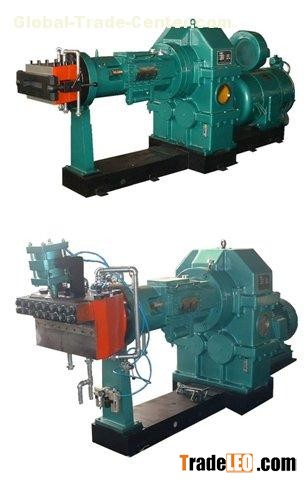

The machine is used for extruding half-finished rubber products such as inner
tube, tire tread, rim band ,rubber tube, etc.
