Introduction

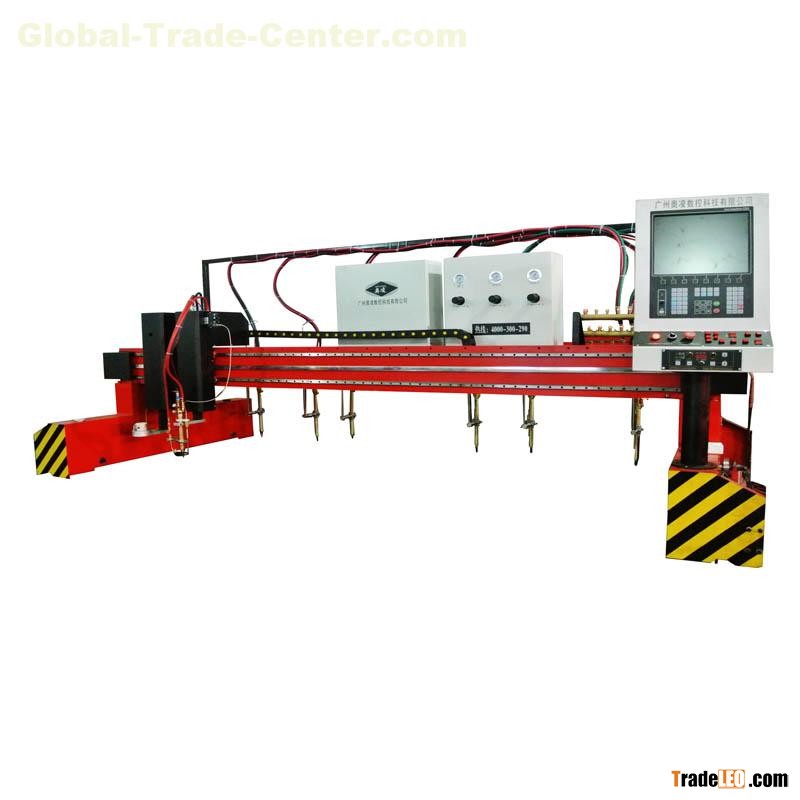

CNC multi-head strip cutting machine is one kind of high-efficiency and high-precision multifunctional cutting machines. Cutting freewill plane geometrical graphics including vertical and horizontal slats. frame-type design for good rigidity and intensity.

Features

• 1. Sino-German joint venture system: Ruiduncnc Large CNC cutting control system.
• 2. Bilateral Driver
• 3. Japan original Panasonic servo drive system
• 4. Germany planetary gear reducer
• 5. Taiwan linear guides
• 6.9 sets of ribbon cutting torch system
• 7.2 sets of CNC cutting torch system(Flame capacitor automatic height adjustment device; one set plasma arc voltage automatic height adjustment device.
• 8. Gas distribution systems
• 9. Rail grinding, Guide rail
• 10. Horizontal StepOver: 4.0m ; Vertical length:8.0m
• 11. The effective cutting width: 3.2m The effective cutting length: 6m

Application

The main characteristics of flame cutitng machine is that this model uses bilateral drive mode so that the machine can operate smoothly, have high locating accuracy and simple & good appearance. Moreover, the modularized design makes machine components have strong exchangeability and equipment function be expanded more simply & conveniently. The user can configure plasma cutting torches in different sizes according to the process requirements. Now it is widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc..

Technical parameters

Transverse span	3000——8000mm
Effective cutting range	2200——7300mm
The length of the rail	12000——14000mm
Effective cutting length	10000——12000mm
Cutting Speed	0——6000mm/min
CNC flame cutting torch	2-4 sets
Automatic ignition controller	2-4sets
Automatic height adjusting device	2-4sets
Effective cutting thickness	6-200mm
The source of cutting gas	Oxygen-propane
Precision	±0.5mm
Cutting surface smooth finish	Ral2.5
Vertical and horizontal drive motor	Using Schneider digital servo motor drive
Vertical drive mode	Double side drive
Oxygen Pressure	≤ 1.2Mpa
Acetylene pressure	≤ 0.1Mpa
Voltage	AC 220V±10V
Frequency	50/60Hz

Main Parts List

Item	Specification	Qty
Main frame	Aoling	1 set
Control System	Ruiduncnc 5000	1 set
Driving System	Both-side servo motor	1 set
Planet reducer	Germany	1 set
Arc-volt height controller	Aoling	1 set
Guide rail	Taiwan guide rail	1 set
Plasma wear part	Original parts	5 sets
Nesting software	STAR CAM	1 set
Longitudinal guide rail	24KG heavy duty guide rail	some
Horizontal guide rail	Made in Taiwan	some
Servo motor	France Schneider	3 sets
Arc-volt height controller	Ruidun(made in Germany)	1 set
Automatic ignition device	Made in China	1 set
Flame torch	Aoling	1 set
Capacitance height controller	Ruidun(made in Germany)	1 set

Software and nesting

Converting CAD drawings or computer-drawn graphics into cutting machine parts of g-code, store the g-code file to a USB memory stick and entered in a cutting machine, g-codes are automatically converted into cutting programs. This product is equipped with a USB interface for easy program transfer. Set the kerf compensation value in the nesting software.
