Product overview

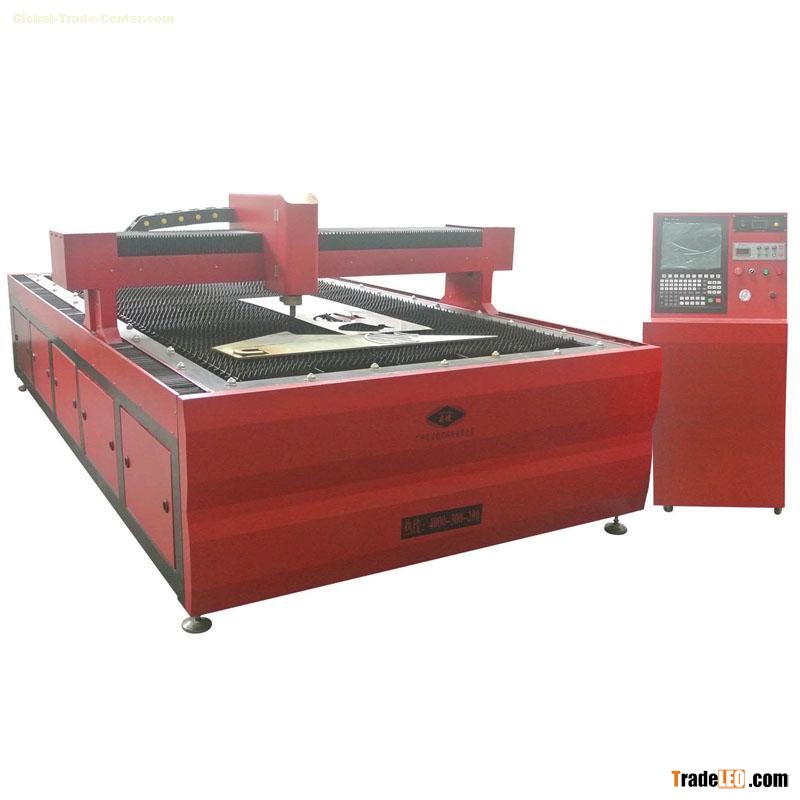

- 1.The device is a kind of desktop CNC plasma cutting machine featuring high speed, precision cutting and small size.
- 2.The desktop CNC plasma cutting machine is specially designed for the rapid plasma cutting of carbon steel plates, aluminum plates, copper plates, stainless steel plates and other metal plates in any graphic. Under normal circumstances, the cutting plane does not need secondary processing, and the cutting effect is good, without dross and burrs.
- 3.The desktop plasma cutting machine can replace punch for processing and is characterized with high degree of automation, high reliability, high accuracy, low price, easy operation and maintenance, etc. The product is particularly suitable for medium and thin non-ferrous metal plates.
- 4.Desktop CNC plasma cutting machine is extensively used in machinery manufacturing, auto parts, hardware, sports equipment, advertising and other industries, with a high cost performance.
Application Materials
Galvanized sheets, white sheets, titanium olate, carbon steel, stainless steel, alloy steel, composte metal.
Application Industries
This machine can be used in ship building,construction equipment, transport equipment, aerospace industry, bridge building, military industry, wind power, structural steel, boiler containes making, agriculture machinery, chassis electrical cabinets, elevator manufacturing, textile machinery and environmental protection equipment etc.
Feature
- 1. CNC plasma cutter machine adopts light-weight structural design, the structure has good rigidity, light weight and small motion inertia.
- 2.Desktop structure. Y axis adopts synchronous double-motor and driver, and X,Y,Z axises adopt linear guideways, stable transmission and high operational precision.
- 3.Mainly cut Three-dimensional LED advertising word, metal plates with groove characters and baseboards, and cutting accuracy lives up to excellent index.
- 4.Small cutting holes, tidiness and no-residue phenomenon, avoids shaping process at second time.
- 5.Fast cutting speed, high precision and low cost.CNC system with high configuration, automatic arc strike and stable performance, with above 99% arc strike success rate.
- 6.Support for standard G code path files which are generated by softwares such as Artcut, Artcam, Type3. DXF format files generated by softwares such as AUTOCAD can also be read through software transform. The controlling system adopts U disk to exchange processing files, operation is convenient and speedy.
- 7.Plasma power source and burning torch are equipped with famous domestic brands. and they are manufactured by factories with multi-termed national patent technology.
- 8.Training video available air plasma cutting machine , plasma cutting machine , cnc plasma power source.
Technical parameter
1 | Cutting shape | any shapes |
2 | LCD Display Dimension | 7.0 Inches |
3 | Effective Cutting Width (X axis) | 1250mm |
4 | Effective Cutting Length (Y axis) | 2500mm |
5 | Cross Beam Length | 1500mm |
6 | Longitudinal Rail Length | 3000mm |
7 | Cutting Speed | 0-8000mm per minute |
8 | Plasma Cutting Thickness | 2--20mm ( Depends on plasma power source capacity) |
9 | lifting body | 1set |
10 | Drive Mode | bilateral drive |
11 | Cutting Mode | plasma |
12 | Ignition device | Auto ignition device |
13 | Height regulating device | Arc voltage height |
14 | File transmission | USB transmission |
15 | Nesting software | Fastcam standard |
16 | File transmission | USB |
17 | LCD Display Dimension | 7" |
18 | Plasma Power Source | Ruiduncnc 45/85/105/120/200A |
19 | Plasma Air | only pressed Air |
20 | >Plasma Air Pressure | Max. 0.8Mpa |
21 | Cutting precision | 0.5mm National standard JB/T10045.3-99 |
22 | Control accuracy | 0.01mm |
23 | Power Supply Voltage/Frequency | 380V 50HZ |
24 | Rated Power Supply | 1000W |
25 | Working Temperature | >-10C-60C. Relative Humidity, 0-95%. |
Cutting sample
Packages
Canton Fair
Foreign customers
Our company
Our Workplace
After-sales service
- 1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need. The whole machine we offer one year guarantee time free, without consumable parts replacement and man-made fault.
- 2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
- 3. We will offer our service through email and phones if the buyer needs any help on technical problems.
- 4. My company English software can do all kinds of pattern recognition, software upgrading and updating free.
Why choose us?
- 1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility.
- 2 A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
- 3. One year warranty,free maintenance throughout service time.
