Brand:Jiaxiao
Model:DTN-80
MOQ:16 Sets
Send Inquiry

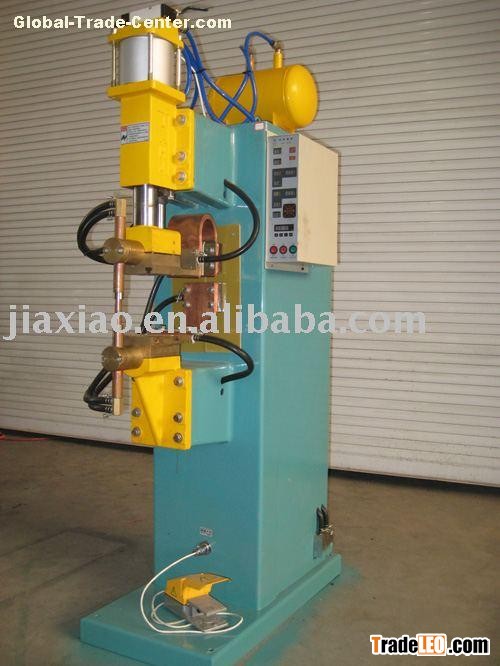

ac spot welder
Technical data:
| Model NO. | DTN-80 |
| Rate primary voltadg | 380V |
| Rated capacity | 210KVA |
| Rated primary current | 105A |
| Secondary Max. current | 26KA |
| Max.Welding Capacity(mm) A3 steel | 4.0+4.0 |
| Secondary no load voltage | 7.9V |
| Electrode Pressure | 9000N |
| Arm length (mm) | 350 |
| Electrode stroke (mm) | 50 |
| Weight | 450kg |
| External dimensinon(mm) | 910×550×1750 |
There are 16 pcs can be packed in 20GP
There are 36 pcs can be packed in 40GP
