Brand:Yadong
Model:400 480
MOQ:1 Sets
| Type | XKJ400 | XKJ480 |
| Roller Diameter (mm) | 400/518 | 480/612 |
| Working length of rollers (mm) | 760 | 800 |
| Linear speed of front roller (m/min) | 25.00 | 24.00 |
| Friction ratio of front and rear roll | 1:1.71 | 1:1.75 |
| Max gap (mm) | 10 | 15 |
| Capacity per batch (Kg) | 30~50 | 30~50 |
| Overall dimension (mm) | 4550×2100×1850 | 5070×2800×1978 |
| Weight (Kg) | 12000 | 20000 |

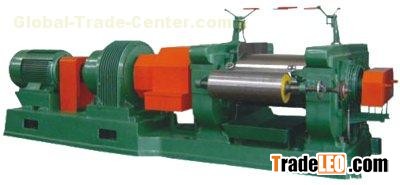

The machine is mainly used for refining of reclaimed rubber and rubber sheeting.
The rollers are made of chilled cast iron with wear-resistant hard surfaces. The two rollers are smooth ones with bored cavities and can be cooled homogeneously. The protective device is provided to protect the main parts from damage due to overload. In case of emergency, the safety rod is pulled down and the rollers will be stopped immediately.
