LZJ02Z

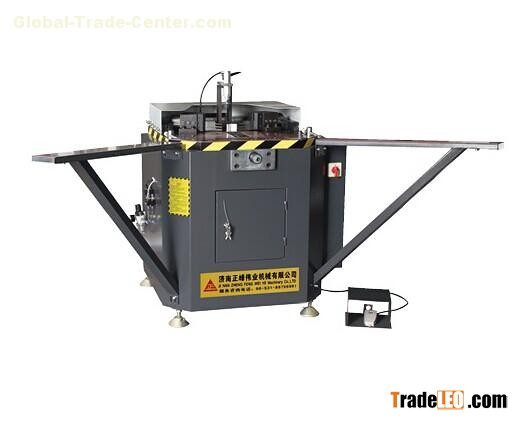

Corner crimping machine for aluminum window & door

Main Features

1.Put the corner key into the  45° aluminum alloy window profile,move the bump fork squeeze the two window profiles tightly to make a firm  90° angle. You can adjust the machine to single-side-dour point bump according to the characteristic of the corner key

2.Because of enlarging the size and the bump power, it is an ideal choice for the angle forming of thermal-break doors,window profiles and extremely thick curtain wall materials.

Technical Parameters

1.Power supply 380V/50HZ

2.Motor power 2.2kw

3. Motor rotational speed  1400r/min

4.  Profile processing height 120mm

5.Profile processing width 90mm

6. Air consumption pressure  0.5-0.8mpa

7. Overall dimension 2300*1200*1300mm
