Technical data:

1.Raw material:  recycle paper  wood pulp   wooden pulp board   virgn  pulp

2.Output paper:  corrugated  paper  , liner board

3.Output weight: 13-51g/m2

4.Model :787

5.Net paper with :787mm

6.Capacity:  0.8-1ton/day

7.Working speed: 80-250m/min

8.Rail gauge :1300mm

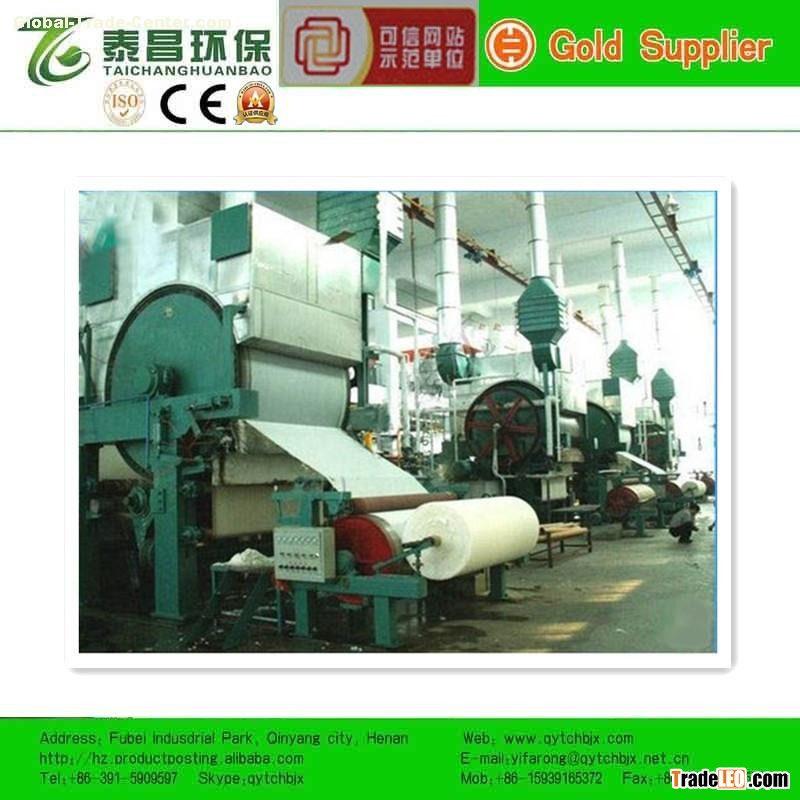

Structure and characteristics:

1. Cylinder section;one stainless-steel plate type cylinder mould(1800mm×787mm). one Sealed pressure cylinder vat. One couch roll (500mm×3300mm), coated by rubber,rubber hardness HS-38°C±2.

2. Dryer section: one dryer can (787mm×1500mm), one touch roll(600mm×3300mm), pneumatic loading device. Coated by rubber, Rubber hardness HS-90°C±2, dryer can equipped with one set of Double layer exhaust hood.

3. winding section:one sweat cylinder (787mm×1500mm),winding paper on sweat cylinder.

4. Rewinding and cutting section: equipped with 787mm rewinding & perforating machine,

5. drive & Control section: Alternating current ,frequency converter, speed control ,section drive
