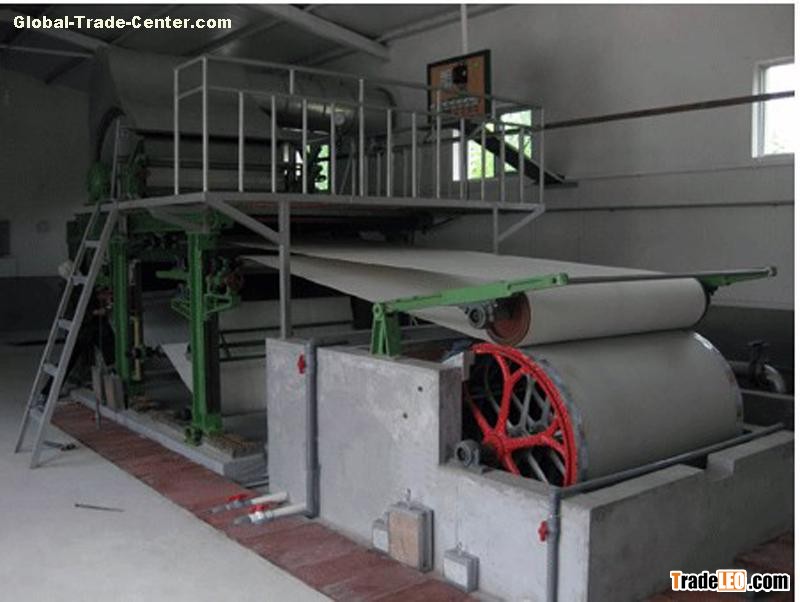

Small Type Paper Making Machine
They are multifunctional, producing toilet paper, cultural paper, wrapping paper. Firework paper, corrugated paper. The raw material could be waste paper, straw, wood, bamboo, bagasse, cotton stalk and other plant which contains rich fiber.
Technical Parameters:
| Model | 600 | 787 |
| Trimmed Width | 600mm | 787mm |
| Weight of Paper | 15-180g | 15-180g |
| Cylinder | Φ600×750mm | Φ700×1100mm |
| Gauge | 880mm | 1300mm |
| Weight | 3.6T | 5.2T |
| Reduce Speed Machine | JZQ-250 | JZQ-250 |
| Structure | 3500mm×1500mm×2100mm | 5500mm×1600mm×1700mm |
| Working Speed | 20-60m/min | 20-80m/min |
| Capacity | 0.5-1.2T | 1.5-2.5T |
| Dryer | Φ800×750mm(polishing) | Φ1000×1100mm(polishing) |
| Driving | Gear drive | Gear drive |
| Motor | Adjustable-speed motor(2.2kw) | Adjustable-speed motor(4kw) |
Property:
There are two types: air cylinder and buring-cylinder.
Air cylinder uses the stream transmitted by dryer, adjusted by gas-pressure meter, good stability, easy to operate.
Buring-cylinder uses fuel heated directly, no need boiler, low cost, simple process. The fuel could be coal, charcoal and coke. Mechanized and reliable operate, compact structure, cycling use of water, zero emission.
