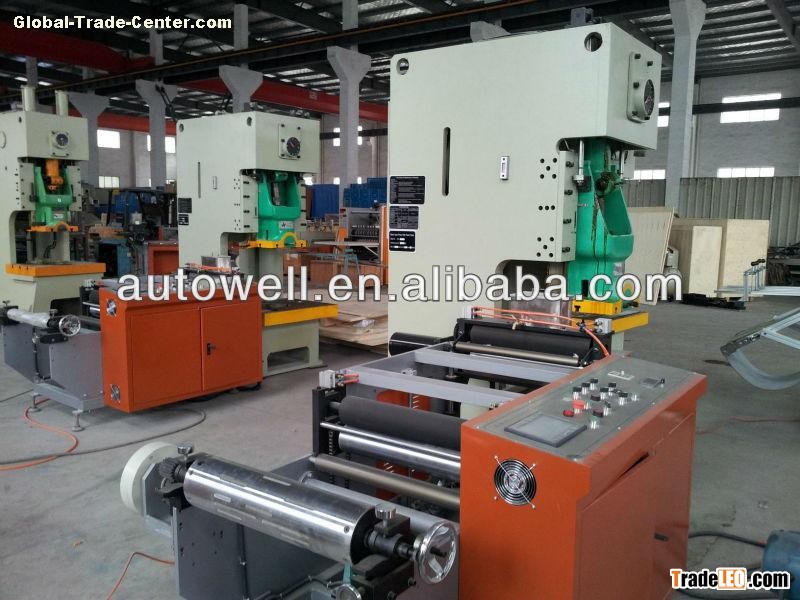

Main parts:

1. an auto-lubricated feeder

2. an electronic controlled panel(Siemens brand)

3. a pinch head controller

4. 45T Pneumatic Punch

5. a set mould of food container which is vertical curl or full curl(optional)

6. an automatic conveyor(optional)
7. a collector of finished product

8. a die change machine(optional)

9. a set of machine which assist to change foil(optional)

10.mould(optional)

Procedure of production line:

Raw material:aluminium foil-->Auto-lubricated feeder-->Pinch head controller-->A precise  presser with four pillar-->Mould-->Collect product by hand (or auto-collector)-->Packing

 Specification of Auto-Lubricated Feeder:

Max. Material Roll Dia.: ￠value="650" tcsc="0" unitname="mm" w:st="on">650mm

Max. Material Roll Width: value="650" tcsc="0" unitname="mm" w:st="on">650mm

Feeding Speed:10value="30" tcsc="0" unitname="m" w:st="on">-30M/min

Feeding Length: 30value="900" tcsc="0" unitname="mm" w:st="on">-900mm

Feeding Tolerance: +/value=".3" tcsc="0" unitname="mm" w:st="on">-value="0.3" tcsc="0" unitname="mm" w:st="on">0.3mm

Capacity: 1Kw

Voltage: 380V/220V

Weight:0.6T

Dimension: 1200x1200xvalue="1100" tcsc="0" unitname="mm" w:st="on">1100mm (L*W*H)

Length Controller:700x720xvalue="550" tcsc="0" unitname="mm" w:st="on">550mm (L*W*H)

Specification of 45T Pneumatic Punch:

Pressure: 400KN

Hole Size of Collecting Table: 300*value="300" tcsc="0" unitname="mm" w:st="on">300mm

Production Output: 40-80times/min

Board Thickness of Collecting Table: value="50" tcsc="0" unitname="mm" w:st="on">50mm

Max. Height of Mould: value="290" tcsc="0" unitname="mm" w:st="on">290mm(excluded working plate value="50" tcsc="0" unitname="mm" w:st="on">50mm)

Slide Board Size: 220*value="400" tcsc="0" unitname="mm" w:st="on">400mm

The Distance from Center of Slide Piece and Punch Unit: value="340" tcsc="0" unitname="mm" w:st="on">340mm

The adjustment height of Installation of Mould: value="60" tcsc="0" unitname="mm" w:st="on">60mm

Size of Screw Hole of Mould: 50*value="60" tcsc="0" unitname="mm" w:st="on">60mm

Size of Collecting Table: 660*value="1000" tcsc="0" unitname="mm" w:st="on">1000 mm*value="50" tcsc="0" unitname="mm" w:st="on">50 mm

Dimension: 1500*1125*value="2315" tcsc="0" unitname="mm" w:st="on">2315mm (L*W*H)

Motor Capacity:5.5KW

Weight:value="4000" tcsc="0" unitname="kg" w:st="on">4000kg

Voltage:3-380v  50Hz
