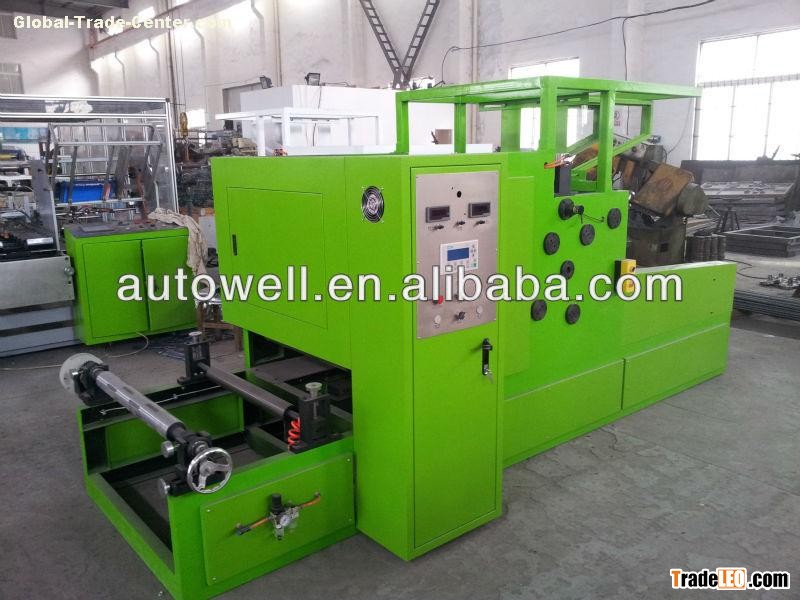

Main parts:

1. an auto-lubricated feeder

2. an electronic controlled panel(Siemens brand)

3. an automatic paper core uploading part

4.an automatic paper core glueing part

5. aluminum foil roll rewinding part

6. a collector of finished product

Procedure of production line:

Raw material:aluminium foil unwinding&feeding--> paper core uploading—>automatic paper core glueing -->aluminum foil rewinding--> Collect product by hand (or auto-collector)-->Packing

Main parameter:

1.Thickness of raw material: value=".01" tcsc="0" unitname="mm" w:st="on">0.01mmvalue=".02" tcsc="0" unitname="mm" w:st="on">0.02mm

2.Width of raw material: 100value="500" tcsc="0" unitname="mm" w:st="on">-500mm

3.Maximum unwinding diameter: Φ value="600" tcsc="0" unitname="mm" w:st="on">600mm

4.Inner diameter of parent roll core: Φ value="75" tcsc="0" unitname="mm" w:st="on">75mm

5.Inner diameter of finished product roll core:Φ 25 Φ30 Φvalue="35" tcsc="0" unitname="mm" w:st="on">35mm

6.Finished roll length:value="3" tcsc="0" unitname="m" w:st="on">3m-value="300" tcsc="0" unitname="m" w:st="on">-300m

7.Production efficiency based on length of roll.

8.Unloading magnetic powder brake: 25N.M

9.Winding magnetic powder clutch:12N.M

10.Overall dimension: 4000*1350*value="1710" tcsc="0" unitname="mm" w:st="on">1710mm

11.Rated power of complete machine:4KW

12.Compressed air pressure: 0.5 Mpa; (prepared by the customer)

13.Weight of complete machine: about value="1500" tcsc="0" unitname="kg" w:st="on">1500KG
