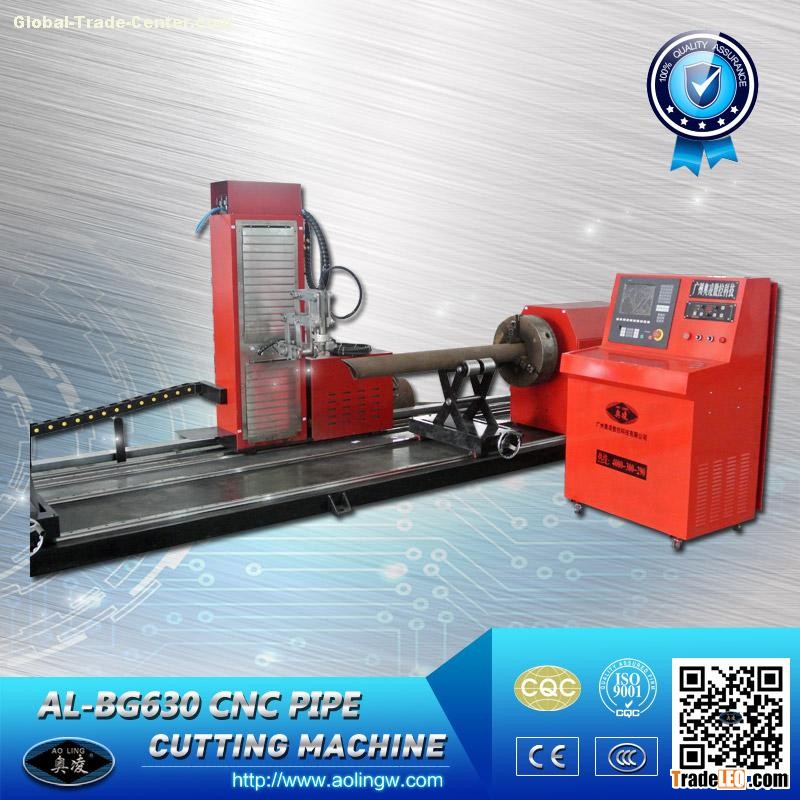

Brand:Aoling
Model:Al-XG630
MOQ:1 Sets
Technical parameters
| Parameter | Unit | Remark | |
| Effective cutting range | 500-12000 | mm | Can be customized |
| Cutting diameter range | 50—600 | mm | Can be customized |
| Cutting thickness | 3—25 | mm | Can be customized |
| Vertical maximum speed | 10 | m/min |
|
| Chuck rotation maximum speed | 15 | r/min |
|
| Minimum length of waste | 50 | mm |
|
| Ambient temperature | -10—+40 | degree |
|
| Total axis | 5 | axis |
|
| Maximum lift height torch | 350 | mm |
|
| Minimum Thickness | 2 | mm |
|
| Cutting mode | Plasma/flame |
|
|
| Longitudinal movement | auto |
|
|
| Support bracket height adjustment mode | Manul |
|
|
| The minimum distance between the support bracket | 250 | mm |
|
| The number of support bracket | 3 |
|
|
CNC control system
Using Ruiduncnc industrial control computer configuration, pentium grade Microprocessor, frequency 2.8GHZ, 512M memory, 160G hard disk, USB interface and 10.4 Color LCD monitor.
- A, CNC control mode.
- B, Schneider imported original all-digital AC servo motor and high-precision drive.
- C, Plasma power : Ruiduncnc made in Germany( or as customer demand)
