Brand:zhenying
Model:ZYC-200
MOQ:1 Sets
Our patented item
1.Profession in 15 years.
2.ISO 9001:2008&CE.
Description

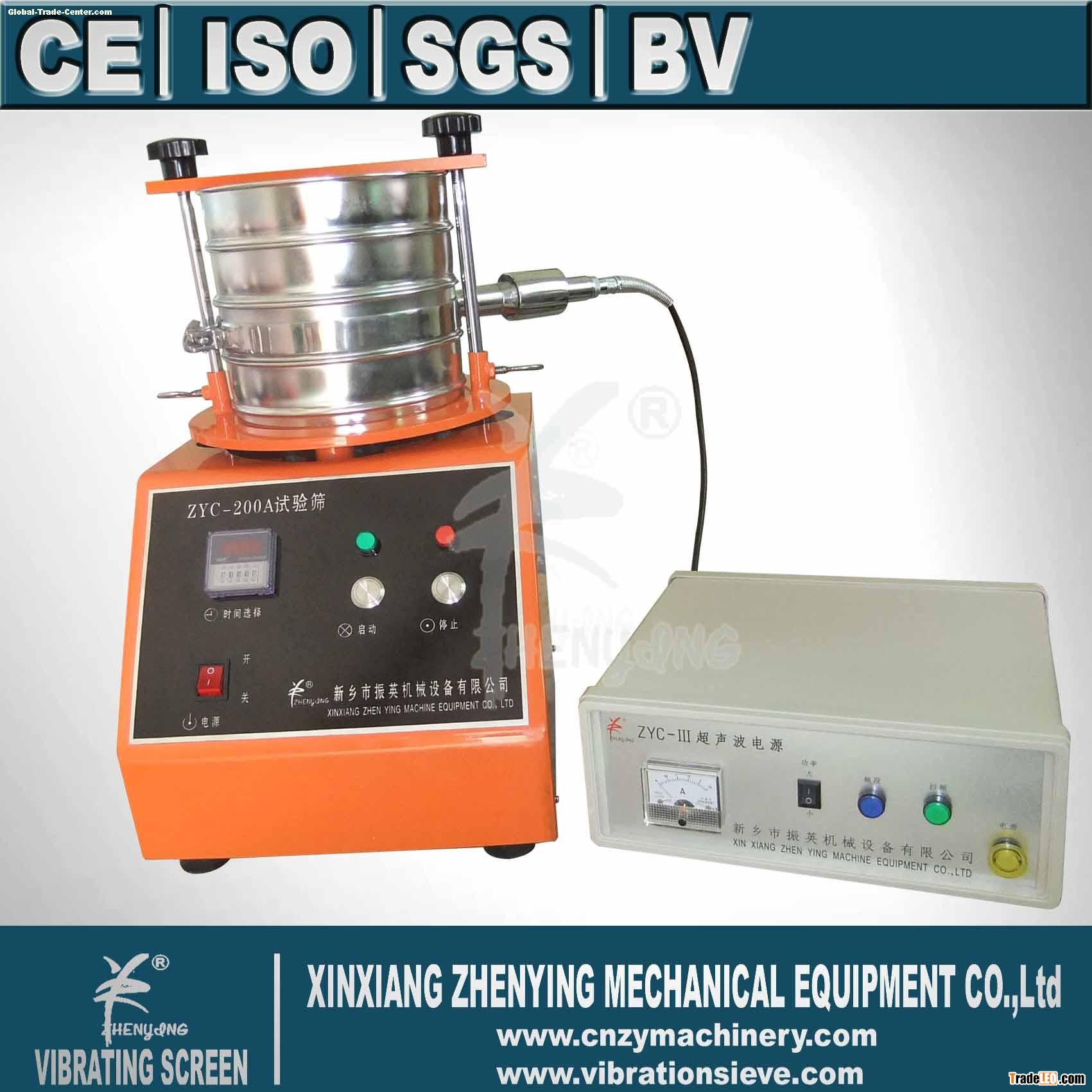

In comparison with other inspection or test screen, Zhenying precise inspection
screen not only add the mechanical vibration of the machine, but also the vibration
of mesh screen. As the result ,the powder diameters up to 20um, slurry or liquid
or serous fluid of 5um can be separated. the standard sieve arrange has been
expanded to 75mm,200mm and 300mm.Even during the smallest test of the lab.
the applying of ultrasonic screening technique is best suitable for dealing with
the tricky materials.
Tech parameter
| Name | Unit | Data | |
| Layers | layer | 1-8 | |
| Diameter | mm | Φ200 | |
| Granularity | mm | 0.038-3 | |
| Noise | dB | ≤50 | |
| Input quantity (once) | g | ≤200 | |
| Amplitude | mm | ≤5 | |
|
Motor | Voltage | v | 220 |
| Rotation speed | r/min | 1420 | |
| Power | Kw | 0.125 | |
Application
Inspection screen can widely used in the production of the raw material or online
products.small test of production process ,the products inspection in the lab,
screening the precious materials and the refined materials.
Feature
1.Mesh screen with more sieve mesh number can be used.
2.Large screening volume and capacity.
3.Multi-layer screen with far more sieve mesh number can also be applied.
4.The tricky powder can also be screened efficiency .
5.Along with the light and partical clamping fixture
6.All the current inspection and classification screen can be transformed.
