Brand:bidragon
Model:YGL-F
MOQ:1 Sets
Send Inquiry

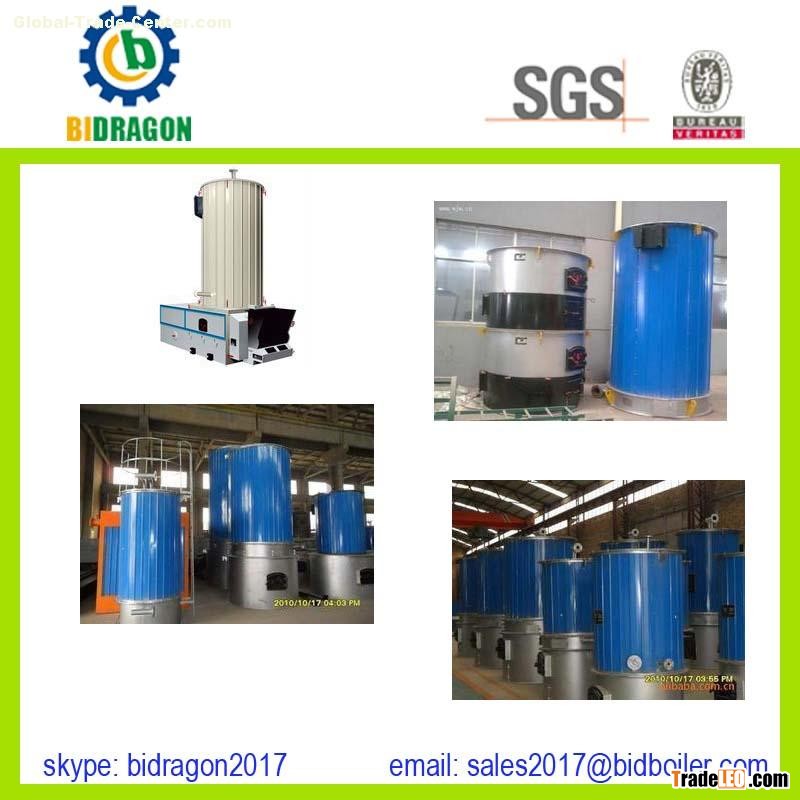

Waste Wood Fired hot oil boiler
1. Products Features:
- The structure is simple and the price is cheaper, it is easy to install.
- The coiled pipe is arranged on the furnace top, which can protect the furnace top and avoid burning out it.
- The conduction oil is from low inlet to high outlet, which is more easier to exhaust, and improve the thermal efficiency of the furnace.
- Complete supporting facilities , comprehensive technical.
2. Technical Parameter:
| Type | YGL-120F (10×104Kcal) | YGL-240F (20×104Kcal) | YGL-350F (30×104Kcal) | YGL-500F (40×104Kcal) | YGL-700F (60×104Kcal) | YGL-1000F (80×104Kcal) | YGL-1200F (100×104Kcal) | YGL-1400F (120×104Kcal) | YGL-2000F (160×104Kcal) | |
| Rated Thermal Power kW | 120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 | 2000 | |
| Thermal Efficiency % | ≥73 ≥76 | |||||||||
| Pressure Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
| Max. Temp. °C | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | |
| Circulation Oil m3/h | 12.5 | 20 | 30 | 40 | 60 | 80 | 100 | 100 | 160 | |
| Pipe DN | 50 | 50 | 65 | 65 | 100 | 100 | 125 | 125 | 150 | |
| System Power kW | 6.7 | 10 | 14.1 | 14.1 | 23.5 | 29 | 40 | 40.1 | 48.1 | |
| Fuel | Waste Wood | |||||||||
| Fuel Weight kg/h | 61 | 128 | 191 | 267 | 375 | 529 | 663 | 737 | 1147 | |
| Dimension | Diameter | 1150 | 1300 | 1700 | 1700 | 1960 | 2050 | 2160 | 2290 | 2620 |
| Height | 2385 | 2650 | 3060 | 3475 | 3805 | 4415 | 4760 | 5445 | 6430 | |
| Total Weight kg | 1560 | 1960 | 3520 | 3800 | 4900 | 6100 | ||||
