Brand:ZENELE or OEM

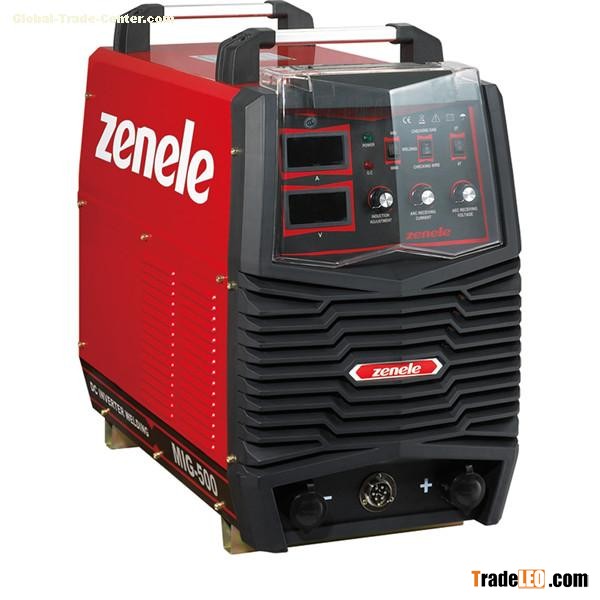

Model:MIG-500
MOQ:10 Pieces
Send Inquiry
MAIN FEATURES
1.Can use CO2,Ar,or 80%Ar+20%CO2 shield gas to weld which meets many kinds of welding process demands.
2.Automatic functions for over voltage and over current protections.
3. Automatic compensation functions for voltage fluctuations(+-15).
4.Adjustable output current and voltage functions to satisfy different kinds of welding requirements.
5.Losed loop feedback, constant voltage output.
6.Can use CO2,Ar,or 80%Ar+20%CO2 shielded gas to weld which meets many kinds of welding process demands.
7.Widely used in electric powder, steel structure and shipbuilding and other industries.
Specifications:
| Model | MIG-200 | MIG-250 | MIG-350 | MIG-500 | |
| Rated input voltage (V) | 1PH AC220 | 3PH AC380 | 3PH AC380 | 3PH AC380 | |
| Rated input power (KVA) | 6.8 | 8.3 | 14 | 24.4 | |
| Rated input current (A) | 31 | 14 | 21 | 34 | |
| Rated working voltage (V) | 24 | 26.5 | 34 | 39 | |
| Output current (A) | 50-200 | 60-250 | 60-350 | 60-500 | |
| No-load voltage (V) | 54 | 64 | 54 | 80 | |
| Rated duty cycle (%) (40℃，10min） | 60% | 200A | 250A | 350A | 500A |
| 100% | 155A | 193A | 271A | 387A | |
| Efficiency (%) | 85 | 85 | 85 | 85 | |
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 | |
| Type of wire feeder | separate | separate | separate | separate | |
| Protection class | IP21S | IP21S | IP21S | IP21S | |
| Net weight (KG) | 16.5 | 18 | 34.3 | 37.5 | |
| Dimension of machine (mm) | 495*220*365 | 495*220*365 | 650*340*590 | 650*340*590 |
