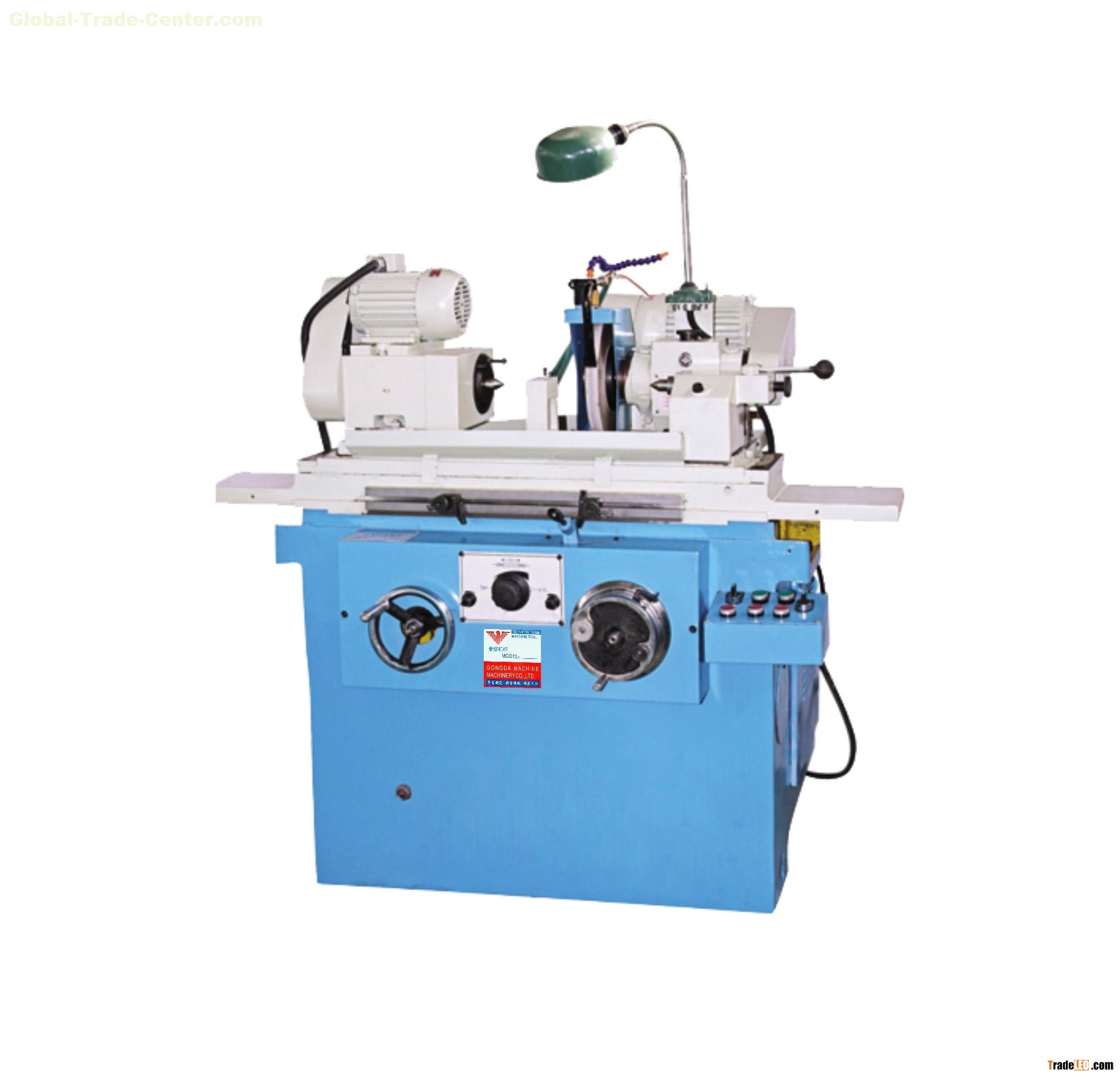

M-40 Universal Tool Grinder
| Specifications | |||
| Capacity | |||
|---|---|---|---|
| Swing over table | 250mm | 10" | |
| Distance between centers | 700mm | 27 1/2 " | |
| Distance between tailstock & workhead | 580mm | 22 3/4 " | |
| Taper hole in worehead spindle one end | MT#5 | ||
| other end | ASA#50 (or B&s#12) | ||
| Table | |||
| T-Slot (numer & size) | one | +0.05mm | 0.565" |
| -0.00mm | 0.563" | ||
| Working surface | 135 x 940mm | 5 5/16"x37" | |
| Gringding wheel spindle rpm | 2600, 3700, 6200 | ||
| Grinding wheel spindle motor | 1.5hp | 1.2kw | |
| Range of movement | |||
| Longitudinal movement of table | 400mm | 16" | |
| Cross movement of saddle | 250mm | 10" | |
| Graduation for table swivel movement | +60° | ||
| Table graduation on end, for taper of | -10° | ||
| Vertical movement of wheel head | 250mm | 10" | |
| Wheel head tilts | +15° | ||
| Wheel head swivels | 360° | ||
| From wheel spindle center to top table | max. 300mm | 12" | |
| min. 50mm | 2" | ||
| From wheel spindle center to T-slot table | max. 415mm | 16 1/2" | |
| min. 165mm | 6 1/2" | ||
| Required floor space | 1550 x 1735mm | 61"x68 1/2" | |
| Net weight of machine | 1160kg | 2560lbs | |
| Dimension of Packing case | 1460 x 1460 x 1510mm | ||
| Standard Accessories | |||
| 1. | Workhead | 24. | Reducing collet B&S No.12 x No.9 (or MT No.5 x NO.3) |
| 2. | Left-hadn tailstock | 25. | Reducing collet B&S No.12 x No.7 (or MT No.5 x No.2) |
| 3. | Right-hand tailstock | 26. | Grinding wheel sleeves (5sets) |
| 4. | Diamond dresser holder | 27. | Grinding wheel (6" x 3/4" x 1 1/4") |
| 5. | Wheel guard | 28. | Grinding wheel (6" x 1/2" x 1 1/4") |
| 6. | Wheel Guard | 29. | Grinding wheel (6" x 1/2" x 1 1/4") |
| 7. | Wheel Guard | 30. | Grinding wheel (3 1/2" x 1 1/2" x 1 1/4") |
| 8. | Wheel Guard | 31. | Grinding wheel (4" x 1/16" x 1/4") |
| 9. | Wheel guard holder (long) | 32. | Grinding wheel (5" x 1 1/2" x 1 1/4") |
| 10. | Wheel guard holder (short) | 33. | Grinding wheel (3" x 1/2" x 1/2") |
| 11. | Universal tooth rest plate and blade holder extension | 34. | Double end wrench |
| 12. | Center gauge | 35. | Nut wrench |
| 13. | Collet wrench | 36. | Driver |
| 14. | Plain tooth rest holder (with offset blade) | 37. | Nut wrench |
| 15. | Ejector rod | 38. | Allen type wrench |
| 16. | T-wrench ofr grinding wheel sleeve | 39. | Washer for 1/8" dia. grinding wheel |
| 17. | Sleeve extracting bar | 40. | Center for workhead spindle B & S No.7 (or MT No.2) |
| 18. | Pin wrench | 41. | 4" spindle extension |
| 19. | Micrometer adjustable toothrest (with round top blade) | 42. | 4" extension wheel sleeve and collar |
| 20. | Levelling pads (3pcs) | 43. | Belt for spindle drive (Poly-flex belt) |
| 21. | Touch-up paint | 44. | Draw-in bolt for workhead and washer |
| 22. | Plain tooth rest holder (with offset blade) | 45. | Tool cabinet |
| 23. | Reducing collet B&S No.12 x No.10 (or MT No.5 x No.4) | 46. | Extension and washers of slit-saw and side-mill cutters. |
Extra Attachments
NO: 01 FACE MILL GRINDING ATTACHMENT
