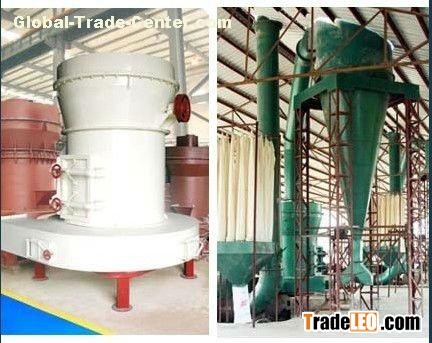

Raymond mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humiditi less than 6% in mining, construction,chemical industry, and metallurgy, such as barite, calcite, feldspar, talcum, marble,limestone, clay, glass. The fineness of the finished product can be adjusted from 100mesh to 325 mesh according to requirements.
| Type | Roller | Ring | Max.Stuff size(mm) | Fineness of product(mm) | power for Machine(kw) | |||
| NO | DIMENSION(mm) | HEIGHT(mm) | INSIDE DIAMETER | HEIGHT(mm) | ||||
| 3R2115 | 3 | 210 | 150 | 630 | 150 | 15 | 0.44-0.165 | 15 |
| 3R2615 | 3 | 260 | 150 | 780 | 150 | 15-20 | 0.44-0.165 | 18.5 |
| 3R2715 | 3 | 270 | 150 | 830 | 150 | 15-20 | 0.44-0.165 | 22 |
| 3R3016 | 3 | 300 | 160 | 880 | 160 | 15-20 | 0.44-0.165 | 30 |
| 4R3216 | 4 | 320 | 160 | 970 | 160 | 20-25 | 0.44-0.165 | 37 |
