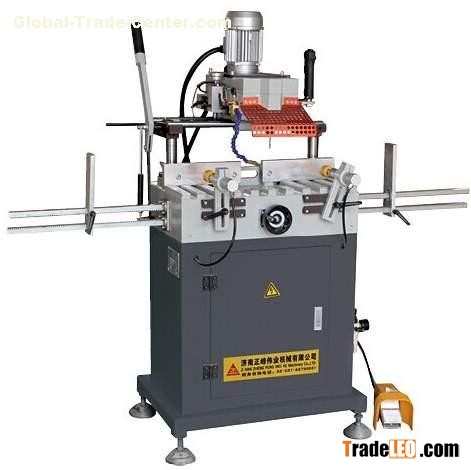

Single Head copying routing machine for aluminum and pvc profile

1.Professional use for processing handles in three holes and the slots which for installing the hardwares at the PVC and Aluminum profile

2.The copy routing size is controlled by the standard template and the proportion is 1:1

3.Adopt the high-speed copy-routing milling head

4.The ruler can be adjusted according to the rotate wheels. So that make the three driller always at the middle of the profile

Technical Parameters

Input power source   380V/50HZ

Total power      0.75kw

Air pressure   0.4-0.6MPA

Diameter of milling cutter  Φ5mm, Φ8mm

Spindle rotate speed  11000r/min

Overall dimension  2000*1130*1550mm
